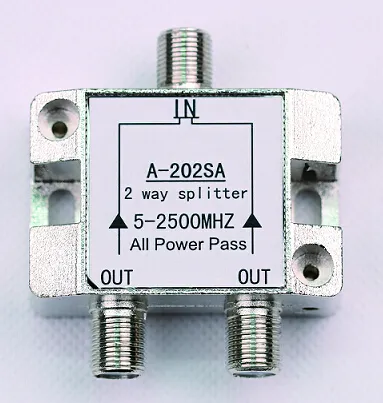

5-2500MHz Satellite TV Splitter (SHJ-A202SA)

Product Description

2 Way 5-2500MHZ Satellite TV Splitter
Features:
Suitable for 5-2400MHz SMATV.
Zinc-die-cast housing and nickel-plated, For high shielding.
Indoor using, With low insertion loss, high isolation and high reflection.
Power passing 12-24V DC/500Ma(Max)
High quality component and professional design
Connectors:"F"type female,75ohm.
Specification:

Item	Frequency Range	2 Way	3 Way	4 Way	6 Way	8 Way
Insertion Loss (IN-OUT)	5-47MHz	≤3.8	≤7.0	≤7.8	≤11.2	≤11.5
	47-1000MHz	≤4.2	≤7.8	≤8.8	≤12.5	≤12.5
	1000-2050MHz	≤4.8	≤10.0	≤10.8	≤14.5	≤14.2
	2050-2300MHz	≤5.2	≤10.8	≤11.2	≤15.2	≤15.2
	2300-2500MHz	≤5.5	≤11.2	≤11.8	≤17.0	≤17.5
Isolation (OUT-OUT)	5-47MHz	≥20	≥20	≥25	≥25	≥30
	47-1000MHz	≥22	≥22	≥22	≥22	≥22
	1000-2050MHz	≥20	≥20	≥20	≥20	≥20
	2050-2300MHz	≥18	≥18	≥18	≥18	≥18
	2300-2500MHz	≥18	≥18	≥18	≥18	≥18
Return Loss (IN)	5-47MHz	≥10	≥10	≥10	≥8	≥8
	47-1000MHz	≥10	≥10	≥10	≥8	≥8
	1000-2050MHz	≥10	≥10	≥10	≥8	≥8
	2050-2300MHz	≥10	≥10	≥10	≥8	≥8
	2300-2500MHz	≥10	≥10	≥10	≥8	≥8
Return Loss (OUT)	5-47MHz	≥12	≥12	≥12	≥10	≥10
	47-1000MHz	≥12	≥12	≥12	≥12	≥12
	1000-2050MHz	≥10	≥10	≥10	≥10	≥10
	2050-2300MHz	≥10	≥10	≥10	≥10	≥10
	2300-2500MHz	≥10	≥10	≥10	≥10	≥10

---
