16mm Pex Al Pex Composite Pipe for Underfloor Heating

Product Description

16mm Pex Al Pex Pipe for Underfloor Heating Composite Pipe:Product Description

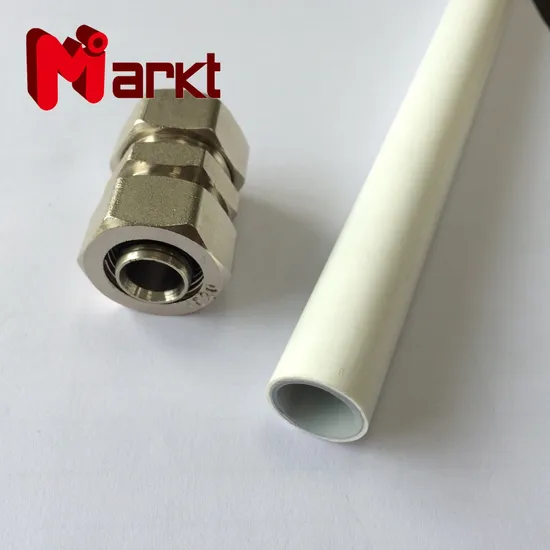

Markt Aluminum -plastic composite pipe is consists of aluminum sheet with inner and outer layer plastic, tightly bonded with a special adhesive to the aluminum sheet that is welded in overlapping and butt welding way.
It have advantage of both metal and plastic pipesit can be used in:
1. Pipes for hot and cold water pipeline system in industry and residential area.
2. Pipes for industry and chemical liquids conveying.
3. Pipes for conveying drinking water.
4. Pipeline for compressed air.
5. Heating system under floor and wall.
Main Characteristics
Thermal conductivity 0.45W/(m. K. )
Coefficient of heat expansion 0.025mm/(m. K)
Bend radius ≥ 5D(D means outside diameter)
Oxygen-permeability 0
Coefficient of heat roughness 0.0004mm
Other Static-free, longevity
Detail goods:In bar or roll
Size ,14-75mm For water and gas Markt PEX-AL-PEX pipe type and size:
1,Type ,butt welding and overlapped
2,Color,white ,yellow ,orange ,blue and black as need
3,Logo:OEM ,NO Logo or cusotmer logo
4,Used for :Water and gas systems
5,Size ,from 16-63mm
6,Supplly both pipe and fittings

ALUMINUNM PLASTIC COMPOSITE PIPE---overlaped +butt welding: PE(PEX)-AL-PE(PEX)
Picture	Desc.	Modle No.	Spec.	Wall thickness(mm)	Qty/pack(M)
	PE-AL-PE PIPE Cold water (MOLP-01)	MOLP12	0912	2.0	100/200/500
		MOLP14	1014	2.0	100/200/500
		MOLP15	1115	2.0	100/200/500
		MOLP16	1216	2.0	100/200/500
		MOLP18	1418	2.0	100/200
		MOLP20	1620	2.0	100/200
		MOLP22	1722	2.5	100/200
		MOLP25	2025	2.5	50/100
		MOLP26	2026	3.0	50/100
		MOLP32	2632	3.0	50/100
		MOLP40	3240	4.0	50/6
		MOLP50	4150	4.5	50/6
		MOLP63	5163	6.0	50/6
	Print:Logo PE-AL-PE water pipe 16*2.0mm 60°C-10bar standard Certificate No. Date 15M
	PE-AL-PE PIPE Gas systems (MOGP-01)	MOGP12	0912	2.0	100/200/500
		MOGP14	1014	2.0	100/200/500
		MOGP15	1115	2.0	100/200/500
		MOGP16	1216	2.0	100/200/500
		MOGP18	1418	2.0	100/200
		MOGP20	1620	2.0	100/200
		MOGP22	1722	2.5	100/200
		MOGP25	2025	2.5	50/100
		MOGP26	2026	3.0	50/100
		MOGP32	2632	3.0	50/100
		MOGP40	3240	4.0	50/6
		MOGP50	4150	4.5	50/6
		MOGP63	5163	6.0	50/6
	Print:Logo PE-AL-PE gas pipe 16*2.0mm 60°C-10bar standard Certificate No. Date 15M
	PEX-AL-PEX PIPE Gas systems (MOGP-02)	MOGP12	0912	2.0	100/200/500
		MOGP14	1014	2.0	100/200/500
		MOGP15	1115	2.0	100/200/500
		MOGP16	1216	2.0	100/200/500
		MOGP18	1418	2.0	100/200
		MOGP20	1620	2.0	100/200
		MOGP22	1722	2.5	100/200
		MOGP25	2025	2.5	50/100
		MOGP26	2026	3.0	50/100
		MOGP32	2632	3.0	50/100
		MOGP40	3240	4.0	50/6
		MOGP50	4150	4.5	50/6
		MOGP63	5163	6.0	50/6
	Print: PEX-AL-PE(X) gas pipe 16*2.0mm 95°C10bar Standard Certificate No. Date 20M
	PEX-AL-PE(X) Hot water pipe (MORP-01) (MORP-02)	MORP12	0912	2.0	100/200/500
		MORP14	1014	2.0	100/200/500
		MORP15	1115	2.0	100/200/500
		MORP16	1216	2.0	100/200/500
		MORP18	1418	2.0	100/200
		MORP20	1620	2.0	100/200
		MORP22	1722	2.5	100/200
		MORP25	2025	2.5	50/100
		MORP26	2026	3.0	50/100
		MORP32	2632	3.0	50/100
		MORP40	3240	4.0	50/6
		MORP50	4150	4.5	50/6
		MORP63	5163	6.0	50/6

Markt other goods :
Brass fitting for pex-al-pex pipes,Screw fitting+press fitting+sliding fitting
Pipe fitting install tools :Pipe cutter+reamer +bender+press tool+clip
Tools for pex-al-pex pipe and fittings:
Certifications
All markt pipe and fittings are produce under ISO9001 Systems ,with certificates of CE WATERMARK and AENOR .
In high and stable quality ,Guarantee 50 years of use with DIN 8077-8078 standard.
Welcome your order !
Packaging & Shipping
All as customer request for packing and shipment :
A:Packing1,In bars 4m or 5m long as need2,Packed with nylon bag first then in bag3,Label as customer need
B:Shipment 1,Quick shipment ,in 10 days for 20ft container2,100% Ship in time3,LCL shipment acceptCompany Profile
Hangzhou Mark Technological Co., Ltd.is a leading piping system manufacturer, specializing in the research, production and sales of Aluminum-Plastic Composite Pipes, PP-R pipes, Pex pipes, PE-RT pipes, HDPE pipes, service as piping systems for hot & cold water, heating and gas translation together with brass fittings ,plastic fittings ,Ball valve and manifold.15 years of experience in production engineering,Standard machine lines and technique , All our products are under multiple inspections on material, production and quality.With the Quality systems ISO9001 And certificate of CE,Aenor ,WATERMARK. Now our products are welcomed in Europe , Middle East and North American.
We welcome your inquriy ,ask sample and order !

---
