Sample Free Indoor FTTH network 1 port 2 port FTB Fiber optic terminal box fiber optic equipment with SC fiber optics adapters

Product Details

Product Description

Product Description
Service & Certificate
TAEPO - Your Professional Fiber Optic Termination Box Manufacturer in China !
Descriptions

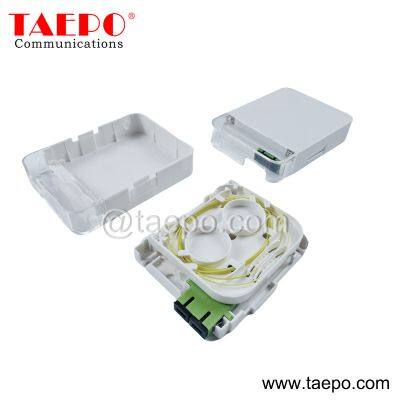

Fiber OpticTermination Box indoor SC 1 fiber (TP-3323-1 FTB) provides a transition point between incoming cable and building access points for residential or business fiber installations.
The termination box is designed to house up to one SC type adapters and is compatible with SC field assembly connectors. Alternatively, an integrated splice holder houses up to two splices for pigtail termination.
The termination box is compatible with round and bow-type indoor drop cables with bending radius greater than 40mm
Main Features
Compact size
Slack storage area
Easy installation
Tindy wiring
Snap on cover
Bending radius greater than 40mm
Multi-location cable entry
Low insertion loss
High return loss
Good durability
Schematic Diagrams
Packing Pictures
Order Data

Item NO	Descriptions
TP-3323-1	Fiber termination box (FTB), indoor, SC, 1 fiber, plastic housing, 115x86x22mm, without adapters, pigtails

---
