Solid State Relay Three-Phase Motor and Reversing Control Module Tsr

Product Description

Product Overview
A solid-state relay (SSR) is an electronic switching device that switches on or off when a small external voltage is applied across its control terminals. SSR consist of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and a coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts .It's also called non-contact switch.
Features
SSR own high reliability : there isn't any mechanical part inside SSR, and it uses totally-enclosed encapsulation structure ,therefore , SSR owns characteristics of resistance to shock , moisture , corrosion , long service life and
reliable.
Main Application:
Industrial automation installment, AC motor control, Intermediate relay,solenoid valve control, Numerical control machinery,external guidnance system,computer periphery connection, Illumination,stage lighting control, Electric stove,heating,warm control, street light,signal light,traffic light,Color photo enlargement,film processing equipment,injection machinery.
Automatic fire control and security system,etc.
Product Parameters
Product Description
Specification:
1.Input and output electro-optic isolation or transformer isolation;
2.Input constant current control and LED display,control signal and TTL & CMOS logic is compatible;
3.Bidirectional controlled sillion or unidirectional controllable counter-parallel output,zero electric current opening zero electric current shutdown;
3.Power solid state uses the SCR chip counter-parallel output and working is stable;
4.Buit-in resistance-capacitance absorbing circuit,dead zone voltage and small harmonic interference;
5.Higher than of 2.5KV safe isolation voltage between the input output and ledger wall's;
6.Small volume,small input power, non-contact, sparkless, noiseless, non-machinery wear, anti-vibration and the long life

Technology Data:

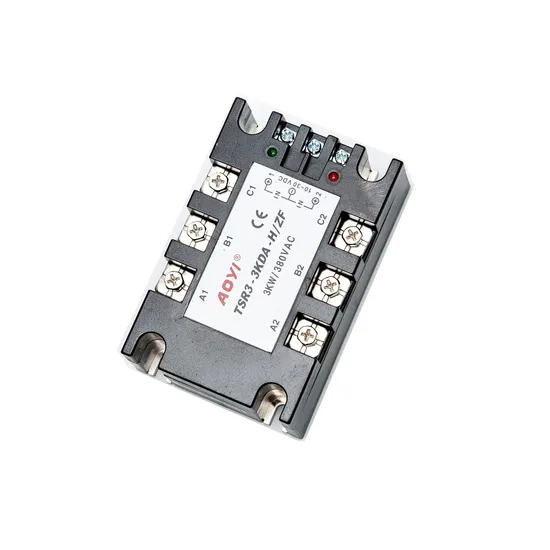

Model	TSR3- KDA-H/ZF(Three-phase motor forward and reverse module)
Load Power	2KW,3KW
Load Voltage	380VAC
Control Voltage	10-32VDC
Control Current	10-30mA
On Voltage	≤2V
Off leakage Current	≤10mA
On-off time	Forward and reverse conversion time interval≥300mS
Dielectric Strength	2000VAC
Insulation Resistance	500MΩ/500VDC
Ambient Temperature	-20~+75ºC
Mounting Mthods	Bolt Fixing
Working Station Indicator	Dual LED
Weight	520g

OPERATION NOTICE:
1.Resistive load could not exceed 60% of the rated current.
2.Inductive or capacitive load could not exceed 40% of the rated current.
3.Electric machine load could not exceed 20% of the rated current.
4.Proper radiator adapted to the working requirement of solid state relay should be equipped, the allowance should be widened when the load radiating condition is not so good. Short-circuit load is not allowable.
5.Over Current Protection: over current and short circuit are the main reasons for permanent damage of output controllable silicon in the SSR, and using fast fuse and air switch is one of methods for over current protection, fuse is also available for small capacity.
6.Over Voltage Protection: It can adopt parallel voltage-dependent resistance(MOV), the MOV area decides the absorption power, while its thickness decides the protective voltage value, generally, 471/10D voltage-dependent resistance for 220V series SSR, 681/10D voltage-dependent resistance for 380V series SSR, 821/10D voltage-dependent resistance for 480V series SSR.

---
