Plastic Making Products Manufacturing Machine Injection Molding

Product Description

Product Description
Product Parameters

SPECIFICATION ITEM			KBD1780
Injection unit	Unit	A	B	C
SCREW DIA	mm	42	45	48
SHOT VOLUME (THEORETICAL)	cm3	346	373	425
INJECTION WEIGHT(PS)	g	318	343	391
INJECTION PRESSURE	Mpa	203	176	155
SCREW SPEED	rpm	0-180
CLAMPING UNIT
CLAMPING FORCE	KN	1780
TOGGLE STROKE	mm	435
SPACE BETWEEN TIE BARS	mm	470*470
MAX.MOLD HEIGHT	mm	470
Min.MOLD HEIGHT	mm	180
EJECTOR STROKE	mm	120
EJECTOR TONNAGE	KN	53
OTHERS
PUMP MOTER POWER	Kw	18
HEATING POWER	Kw	8.5
MACHINE DIMENSION(L*W*H)	m	5.1*1.4*2.0
MACHINE WEIGHT	T	5.3

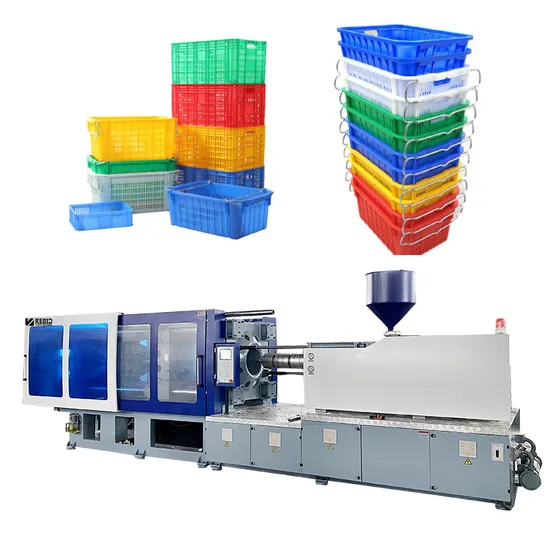

KEBIDA broned popular mini small plastic injection molding machine price
Kebidplas machinery has independently developed and made the KBD series plastic injection molding machine,having the characteristics and advantages with beautiful appearance,strong calming force,high precision,low noise ,energy saving and low consumption.KBD series energy-saving servo injection molding machine.
Plastic injection molding machine can apply the following materials: PP/PE/PET/ABS/PPR/PA/PC/PS/PVC/PPR/TPR/TPE/PU/POM/PLA/PMMA and other plastic materials. But the structure of the machine is different for different materials. The price is also different. Need to contact us to confirm the price.
Give us the drawings or photos and dimensions of your products, and we can recommend suitable machines to you.
Please check the details of the machine:
QUESTIONS:
Q1:How can I talk to you?
A:Please send the inquiry on the platform.
Q2:Can the price a little lower?
A:If you need,talk with me.
Q3:How is the after-sales service like?
A:We have perfect after-sales service.

---
