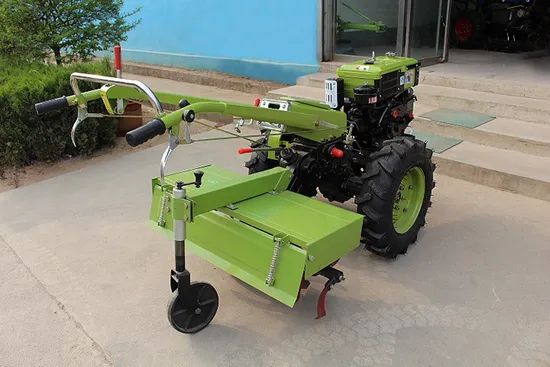

Diesel Agricultural, Farm, Mini Hand Tractors/Walking Tractors with 2-Row Plough

Product Description

Model	8HP walking tractor
Engine parameter	Engine model				ZR180
	Engine Type
			Single, horizontal, water cooled,four stroke
	Starting method		hand start /electric start
	Combustion System				direct injection
	Cooling way				condensing
	Power	1 hour			5.88kw/8hp
		12 hour			5.35kw/8hp
Dimensions(LxWxH)				2170×890×1150mm
Min.Ground Distance				210mm
	Wheel pitch: 640-800mm, clutch: double piece, dry type, three groove, half shaft diameter 39mm, length 360, 6 forward gear, 2 reverse gear. Tire 6.00-12
Tire Pressure	Field Work				80~200(0.8~2.0kgf/cm2)
	Transportation Work				140~200(1.4~2.0kgf/cm2 )
Triangle belt	3 pcs B1700
rotary tiller	90#18 blades

Model	10HP walking tractor
Engine parameter	Engine model				ZR190
	Engine Type
			Single, horizontal, water cooled,four stroke
	Starting method		hand start /electric start
	Combustion System				direct injection
	Cooling way				condensing
	Power	1 hour			7.92kw/10hp
		12 hour			7.0kw/9.5hp
Dimensions(LxWxH)				21700×890×1150mm
Min.Ground Distance				210mm
	Wheel pitch: 640-800mm, clutch: double piece, dry type, three groove, half shaft diameter 39mm, length 360, 6 forward gear, 2 reverse gear. Tire 6.00-12
Tire Pressure	Field Work				80~200(0.8~2.0kgf/cm2)
	Transportation Work				140~200(1.4~2.0kgf/cm2 )
Triangle belt	3pcs B1800
rotary tiller	90#18 blades

Model	12HP walking tractor
Engine parameter	Engine model			ZR195 8.82kw/12HP
	Engine Type
			Single, horizontal, water cooled,four stroke
	Starting method		hand start /electric start
	Combustion System			direct injection
	Cooling way			condensing
	Power	1 hour		9.68kw/13hp
		12 hour		8.8kw/12hp
Dimensions(LxWxH),weight				21700×890×1150mm , 240KG
Min.Ground Distance				210mm
	Wheel base: 640-800mm, clutch: double-plate, dry, regular engagement friction type, 6 forward gears, 2 reverse gears. Tires 6.00-12
Tire Pressure	Field Work			80~200(0.8~2.0kgf/cm2)
	Transportation Work			140~200(1.4~2.0kgf/cm2 )
Triangle belt	3pcs B1830
rotary tiller	90# 18blades

Model	15HP walking tractor
Engine parameter	Engine model					ZS1100
	Engine Type
				Single, horizontal, water cooled,four stroke
	Starting method			hand start
	Combustion System					direct injection
	Cooling way					Evaporative /condensing
	Power		1 hour			12.13kw/16hp
			12 hour			11.03kw/15hp
Dimensions(LxWxH)					2680×960×1250mm
Min.Ground Distance					185mm
Wheel base		580-600mm
Weight		350kg
Tire Model		6.00-12
Tire Pressure		Field Work				80~200(0.8~2.0kgf/cm2)
		Transportation Work				140~200(1.4~2.0kgf/cm2 )
Triangle belt		4 pcs B1880

Farming tools for walking tractor Walking tractor is a all-powerful agricultural machinery.lt can help farmers land consolidation (plought,rotary tillaqe, scarification,ditching,ridqing, earth up,grass mower Paddy field beating etc). Crop planting and seeders (wheat, , corn, soybean seed, peanut, planting potatoes, vegetables eto Harvest (rice, wheat harvest, corn , peanut, potatoes, sweet potato Onions, ginger, qarlic). The other management of land, water, spray, fertilization, paddy field operation etc).
