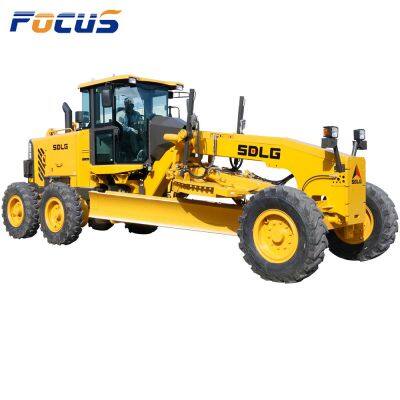

Factory Price Road Construction Machinery 215hp Motor Grader Gr215 With High Quality for Sale
Makes the grade. Exceeds the grade. Sets the bar. our motor graders set the standard for large-area ground leveling, ditching, slope scraping, bulldozing, earth loosening and snow removing for heavy load conditions. Any conditions. This is unconditional excellence. Urban, rural or farm, there's a motor grader in the Xuzhou line to rise up to a new level in leveling. There's a sea of motor graders out there. To cut through all that clutter, this is your blade.
Our grader features excellent performance, fashionable design, flexible and accurate movement and convenient operation.It is suitable for constructing subgrade and pavement, building slope and ditching, and also is good at mixing road mixture,removing snow, pushing loose material and carring out maintenance work on dirt road and gravel road.
Detailed Photos
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
·Sing-handle electro-hydraulic controlled power-shift T/M, 6forward &3reverse shifts makes operation easy and convenient
·Hydraulic lock, auto lock/unlock differential ensures stability and powerful traction
·Ideal axle load allocation provides excellent stability while cutting hard surface
·Serviceable, efficient hydraulic system enables every part to be fully used
·Box-typed frame and advanced T/M enable it to complete heavy-duty work
·A wide working range is accomplished through flexible blade suspension system and articulated frame
high-power and heavy-load engine is strong and powerful.
VHP technology can adapt to different work conditions, such as light load, middle load and heavy load, with different power curves, so that the machine can always work within the minimum fuel consumption range.
ROPS/FOPS safe cab is equipped with a high-grade interior, air conditioner with cooling and heating functions, fan, radio, sound system, cup holder, and cigar lighter (the same as USB interface in the car).
It also has a horizontal sliding window, sun visors, curtains, radio, double rearview mirrors, and a mechanical suspension seat with headrest.
With LED lamps arranged at multiple positions, the operator has better vision at night.
ripper :The width:2083mm Max Lift Height:308mm Max Shoveling Depth:393mm
Blade: The width:2083mm Max Lift Height:308mm Max Shoveling Depth:393mm
Product Features
Fuel Efficient Cumins Engine.
Innovative five-column , Low Vibration, Noise, Dust +UV Resistant cab.
Meritor wet axle with "no-spin " differential lock as standard.
Innovative traction frame swing adjustment mechanism.
Product Parameters
| Key Performance Specs |
| Operating Weight: | 19000 kg (approx) |
| Engine: | Cumins QSL8.9 |
| Length: | 9448 mm |
| Width: | 2625 mm |
| Height: | 3472 mm |
| Tyre Spec: | 17.5R25 |
| Ground Clearance (Front Axle): | 592 mm |
| Tread: | 2156 mm |
| Axle Distance (Front to Rear): | 6465 mm |
| Tread Between Middle and Rear Wheel: | 1622 mm |
| Forward Speed (km/h): | 4.9 / 8 / 11 / 17.9 / 24.7 / 40.2 |
| Rearward Speed (km/h): | 4.9 / 11 / 24.7 |
| Filling Capacities |
| Coolant: | 50 L (approx) |
| Fuel Tank: | 418 L |
| Engine Oil: | 24 L |
| Transmission Oil: | 38 L |
| Tandem Oil: | Each 85 L |
| Drive Axle: | 44 L |
| Hydraulic Oil: | 193 L |
| Additional Specs |
| Traction Force f=0.75: | >99kN |
| Max Gradeability: | >25% |
| Tyre Inflation Pressure: | 425 kPa |
| Working System Pressure: | 24.5 Mpa |
| Transmission Pressure: | 1.85-2.2 Mpa |
| Max Steering Angle Front Wheel: | ~49 Degrees |
| Max Tilt Angle Front Wheel: | ~18 Degrees |
| Max Swing Angle Front Axle: | ~16 Degrees |
| Max Swing Angle of Tandem: | Front 15 Deg / Rear 15 Deg |
| Max Steering Angle of Frame: | ~25 Degrees |
| Max Turning Radius: | 7.6m |
| Blade Specs |
| Max Lift Height: | 452 mm |
| Max Shoveling Depth: | 755 mm |
| Max Tilt Angle: | 90 Degrees |
| Cutting Angle: | Front 40 Deg / Rear 5 Deg |
| Slewing Angle: | 360 Degrees |
| Length x Chord Height: | 3965 x 610 mm |
>>
