| Model | JDA2-400A | JDA2-500A | JDA2-600A | JDA2-800A | ||||||
| Width of Material (mm) | 70-400 | 70-500 | 70-600 | 70-800 | ||||||
| Thickness of Material (mm) | 0.3-3.2mm | |||||||||
| Straightening Roller（Pcs） | Up 4/ Down 3 | |||||||||
| Feed Roller | 2 sets | |||||||||
| Feed Line Height | 1000-1200mm&Accoring to customers’ Requirements | |||||||||
| Coil Weight (T) | 2.5T | 3T | 3.5T | 4T | ||||||
| Coil I.D.(mm) | 450-530mm | |||||||||
| Coil O.D.(mm) | 1400mm | |||||||||
| Feeding Speed (m/min) | 18m/Min | |||||||||
| Feed Accuracy | ±0.1/100mm | |||||||||
| Maximum Feeding Length(mm) | 950-1200mm (Can be customized according to customer requirements) | |||||||||
| Machine Weight (kg) | 2000kg | 2300kg | 2600kg | 3000kg | ||||||
| Power Supply | 220V&380V | |||||||||
| Uncoil Expansion | Hydraulic Expansion | |||||||||
| Machine dimensions(mm) | 3800*2150*1800mm | 3800*2250*1800mm | 3800*2350*1800mm | 3800*2550*1800mm | ||||||
| Air Pressure | 0.5 | |||||||||
| Uncoil Motor (Kw) | AC2.9KW | AC2.9KW | AC4.4KW | AC4.4KW | ||||||
| Feeder Power(Kw) | AC 2.2Kw | AC 2.2Kw | AC 3.7Kw | AC3.7Kw | ||||||
| Control System | PLC+touch Screen | |||||||||
| Standard Configuration: Photoelectric arc control system Feed outlet guide rack device Press arm device The feeding line height is adjusted by screw worm gear Dial indicator Arc control roller The rack contains air pressure disc brake device Rack variable frequency speed regulation Optional Configuration Feed line height electric adjustment device Hydraulic automatic loading trolley | ||||||||||

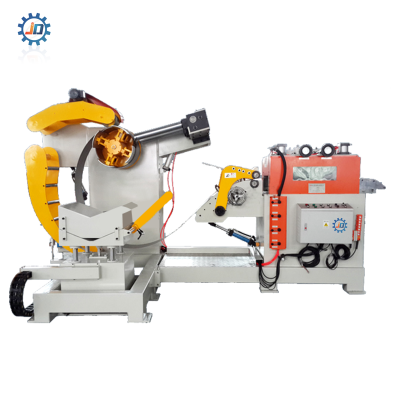

| Three-in-one feeder (thin plate) Features 1. The standard three-in-one feeder is suitable for various metal coils with a thickness of 0.3 to 3.2 mm. It is developed and designed for space saving and easy operation. 2. The worm gear lifting system can easily adjust the discharge height to fully meet the different mold line heights and ensure smoother feeding. 3. The standard three-in-one feeder adopts the Yaskawa human-machine interface control system. Just tap the LCD touch screen to easily set parameters, monitor and protect. 4. It adopts Japan Yaskawa high-precision servo drive motor to ensure accurate feeding and fully automatic feeding with the punch press. 5. The material roll device adopts hydraulic expansion to reduce labor intensity and reduce safety accidents. 6. The material roll automatic pressing device prevents the material from rebounding and loosening. 1. The leveling roller adopts imported high-quality bearing steel. After high-frequency, quenching and hard chrome plating, the surface hardness can reach HRC62℃ or above, with good wear resistance, and high-strength correction ability to achieve ideal flatness. 2. An adjustable reinforcement device is installed in the middle of the drum to increase the rigidity of the roller, prevent the deformation of the drum, and better ensure the leveling accuracy. 3. The hydraulic automatic pressure compensation device ensures the stability of the tension of the rack, prevents the looseness of the coil, and is safe and reliable. 1. It can cooperate with multiple engineering molds to carry out multi-stage feeding, surpassing the single fixed value feeding, meet the customer's demand for multi-stage feeding, and carry out diversified stamping processing. 2. The standard three-in-one feeder can be equipped with an optional hydraulic trolley to reduce the labor intensity of workers, save feeding time, and improve production efficiency. | ||||||||||
| Type | Feed Thickness | |||||||||
| 0.3mm | 1mm | 1.3mm | 1.6mm | 2mm | 2.3mm | 2.5mm | 2.8mm | 3.2mm | ||
| Feeding Thickness of Plating(mm) | NCBFS-400 | 400 | 300 | |||||||
| NCBFS-600 | 600 | 300 | ||||||||
| NCBFS-800 | 800 | 300 | ||||||||
| NCBFS-1000 | 1000 | 300 | ||||||||
| NCBFS-1200 | 1200 | 400 | ||||||||
| NCBFS-1300 | 1300 | 500 | ||||||||
| Standard configuration: 1. Photoelectric arc control system for material rack discharge; 2. Hard chrome plating for feeding rollers and correction rollers; 3. Feeding outlet guide rack device; 4. Material rack pressing arm device; 5. Hydraulic expansion device for material rack; 6. Arc control material support roller; 7. Pneumatic disc brake device for material rack; 8. Frequency conversion speed regulation for material rack; 9. 2 sets of upright feed stopper wheels; 10. 1 set of upright discharge stopper wheels; 11. 3 sets of auxiliary feed port support wheels. Optional Configuration: 1. Hydraulic automatic feeding trolley; 2. Electric height adjustment device for feeding line; 3. Fully automatic oil supply device; 4. Hydraulic feeding trolley. Electrical accessories brand: 1. The human-machine interface adopts 7-inch Hitech color touch screen; 2. Mitsubishi PLC control system; 3. Air switch and AC contactor adopt Schneider brand; 4. Omron relay; 5. Pressing and supporting cylinders are from Taiwan AirTac; 6. Taiwan Dick reduction motor; 7. Taiwan Delta inverter; 8. Japan Yaskawa servo motor; 9. Release cylinder and solenoid valve adopt Japan CKD; Material rack Features: 1. Driven by a high-power electric motor; 2. Air-compressed disc brake device; 3. The material rack adopts a loop-controlled electric eye to control the material discharge; 4. The inverter speed is stable and can be adjusted arbitrarily from 0 to 18 meters; 5. The maximum material outer diameter can reach 1200MM; 6. The inner diameter of the material is 450-530mm; 7. Hydraulic expansion, using a special hydraulic circuit design, long-lasting tension; 8. Pneumatic pressing arm device to prevent the coil from spreading. | ||||||||||
