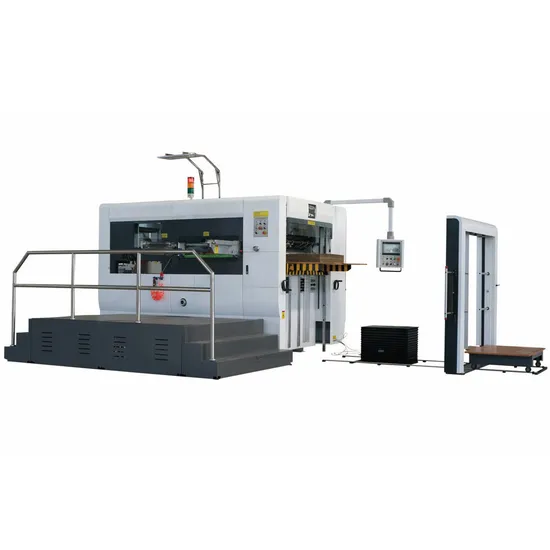

Pizza Box Paper Board Die Cutting Platen Machine

Product Description

Product Description Main Description:
High-strength paper grippers,light material,small inertia,and high strength,can smoothly transfer paper in high-speed operation.The advanced gripper mechanism can adapt to various types of cardboard and corrugated paper. Front,back and side positioning mechanism ensure the precision of die cutting. Front positioning mechanism is equipped with a precision detection optical fiber switch to detect whether the paper is in place and avoid paper waste. The double-layer reinforced die-cutting frame is pneumatically locked and laid into rolling bearing guides,which is safe and easy to operate. Die cutting pressure can be adjusted either as a whole or separately. Frequency conversion control main motor,stepless speed regulation,stable operation. Pneumatic clutch and brake: the torque is transmitted by adjusting the air pressure, with low noise and good braking performance.When the machine is overloaded, automatic shutdown protection to avoid accidents. The main drive adopts the crankshaft connecting rod mechanism to reduce the movement gap,avoid the impact of the worm gear and the worm,and the die cutting pressure is large. The four corners of the movable platform are equipped with cushioning decompression springs to reduce the wear of the machine and make the machine run more smoothly.
Product Parameters

Model	1300	1500	1600
Max paper size	1320*940mm	1510*1120mm	1620-1250mm
Min paper size	400-500mm	450*550mm	500-550mm
Max die cutting size	1300*920mm	1490*1100mm	1600-1220mm
Max die cutting pressure	300N/cm2	320N/cm2	350N/cm2
Paper processde	200-2000g/m2	200-2000g/m2	200-2000g/m2
Corrugated paper	8mm max thicness	8mm max thicness	8mm max thicness
Die cutting precision	±0.1	±0.1	±0.1
Max speed	4500sheets/h	4500sheets/h	4500sheets/h
Max feeding pile height	1400mm	1400mm	1400mm
Max stacking pile height	1200mm	1250mm	1300mm

Packaging & Shipping
Company Profile
Our Advantages 1.Professional customer After-sale service.
2.More than 20 years carton machine production experience.
3.24 hours friendly helpful customer services.
4.We took lead through the ISO9001 certification in carton package industry in China,now we also passed the SGS and BV certification,strict standard quality requirement.
5.Our products sell well in more than 20 provinces and cities nationwide,also in western Europe,Asia and other countries.
6.OEM Accepted: The products can be customized.
After Sales Service

No.	Service
1	The product meets China industry standard.
2	The supplier provides paid service,the buyer is in charge of workers' salary, round flight tickets,living and food during the machinery installed period.
3	The supplier is responsible for installation and training the technician, these kinds of cost should be paid by buyer.
4	WARRANTY PERIOD: 12 months counting from end of debugging.
5	Whole Life paid service.

Thanks for your visit! More details please contact us freely!

---
