Basic Info.
Automation
Semi-Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Roller-Bending Machine
Max. Rolling Width
22/25mm
Transport Package
Wooden Case/Wooden Bracket/Nude Packing
Production Capacity
3 Set/Month
Product Description

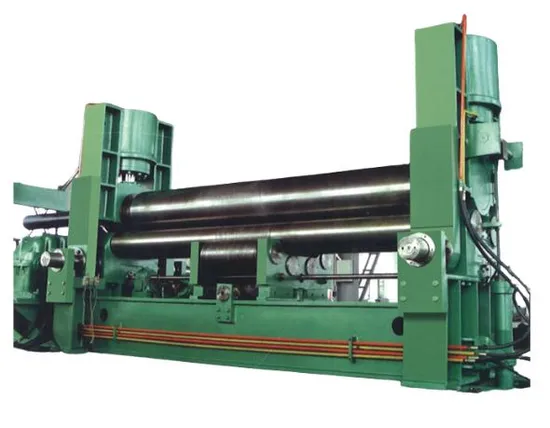

W11S series Bending Machine The Top roller Universal Hydraulic Polishing-edge W11-22/25
Product Features:
Superb product precision
Unique bending process, high-precision end pre-bending, continuous bending without back angle, bending process digital control.
Man-machine dialog control interface, efficient and intelligent operation.
Physical bending process software, man-machine dialog window, bending process automatic compensation.
Single person operation, efficient, safe and convenient. Abundant bending shapes, with different shapes such as rolled O-type, U-shaped multi-section R.
Multi-model selection, according to the use or user requirements, with economic digital display models, TNC CNC machine type selection.
Specification:
Model No. | W11S-22x2500 | W11S-22x3000 | W11S-25x2500 | W11S-25x3500 | W11S-25x4000 |
Item No. | | | | | |
Specification | | | | |
Pressureon the upper roller(Tons) | 160 mm | 190 mm | 190 mm | 230 mm | 270 mm |
Max.plate thickness | End bending | 18 mm | 19 mm | 20 mm | 21 mm | 20 mm |
| Central | 22 mm | 22 mm | 25 mm | 25 mm | 25 mm |
Plate width | 2500 mm | 3000 mm | 2500 mm | 3500 mm | 4000 mm |
Diameter of upper roller | 360 mm | 400 mm | 380 mm | 440 mm | 490 mm |
Diameter of lower roller | 200 mm | 220 mm | 220 mm | 235 mm | 250 mm |
Central distance | 330 mm | 360 mm | 360 mm | 380 mm | 400 mm |
Motor(kw) | Driving | 18.5 | 22 | 22 | 30 | 30 |
| Hydraulic | 7.5 | 7.5 | 7.5 | 11 | 11 |
| Shift | 2.2 | 4 | 4 | 4 | 4 |
FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
>>
