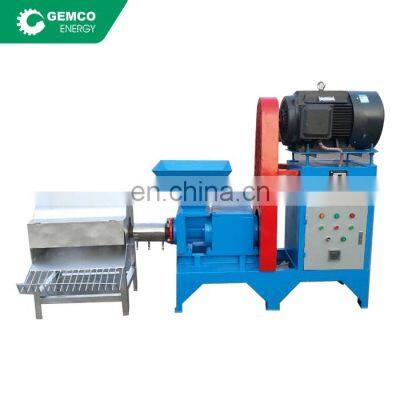

combined crusher hardwood wood chip biomass briquette machines
There are different types biomass briquette machines. Mini biomass rice husk charcoal making machine is also known as charcoal briquette making machine.
GEMCO biomass briquette machines can made of all kinds of agro-wastes and forest residues into charcoal briquettes. If there are abundant biomass resource available, you can consider starting a biomass briquetting plant. The produced charcoal is featured with high density and good flammability, alternative to firewood and coal.
Our professional salesman can give you suggestions to choose the most suitable type coconut shell charcoal making machine.
Click Now for Catalogs & Factory Price!Parameters of biomass briquette machines
ModelGCBC- IGCBC-IIAGCBC-II
| Input Raw Material Size (mm) | 3-5mm | 3-5mm | 3-5mm |
| Output Capacity kg/h | 180-210 | 300-350 | 300~350 |
| Shapes Of Briquettes | Φ=40mm, 50mm, 60mm, 70mm |
| Motor Power (kw) | 15kw, 380v, Six Grades | 18.5kw, 360v, 6 Grades | 22 kW |
| Electric Heater (kw) | 2.2kw*2 | 2.2kw×2 | 5 kw |
| Heating Range | 280~350℃ | 280~350℃ | 280~350℃ |
| Life of The Inner Former | 1-2years | 1-2years | 1-2years |
| Size of Briquettes Inside Hole | Dia.16mm | Dia.16mm | Dia.18mm/16mm |
| Density of Briquettes | 1.3T/m³ | 1.3T/m³ | 1.3T/m³ |
| Weight(kg) | 700kg | 800kg | 780 kg |
| Overall Dimension(mm) | 2700*600*1600 mm | 2000*600*1700 | 1500*1200*1600 |
| Raw Material Moisture Requirements | 8~10% | 8~10% | 8~10% |
ModelGCBA-II Briquetting MachineGCBA-Ⅰ- Briquette machine
| Shapes of briquettes | Hollow Quadrangular or Hexagonal | Hollow Quadrangular or Hexagonal |
| Output capacity kg/h | 300~350 | 180-210 |
| Motor Power (kw) | 22 kW | 18.5kw |
| Electric heater (kw) | 5 kw | 5kw |
| Size of briquettes | Dia.60mm/50mm | Dia.50mm |
| Size of inside hole | Dia.18mm/16mm | Dia.16mm |
| Density of briquettes | 1.3 g/cm3 | 1.3 g/cm3 |
| Weight(kg) | 780 kg | 560kg |
| Warranty | 12 Months | 12 Months |
| Overall dimension(mm) | 1500*1200*1600 mm | 1600*1000*1000 |
Click Now for Catalogs & Factory Price!biomass briquette machines lineRaw materials used in biomass briquette machines1.Raw material including sawdust, plant straw, rice husk, manure peper, grain husk, coconut shell, cotton rod, wood chip, sawdust, branch, bark, bamboo powder, wood timbering, forest residual and household refuse, etc. It could be made into briquettes through biomass briquette machines after being crushed.
2. Raw material size: 3-5mm.
3. Raw material moisture: 8-12%.
Click Now for Catalogs & Factory Price!Final briquettes produced by rice husk charcoal making machineUse rice husk charcoal making machine to extrude the well prepared raw material to stick briquettes. During the briquetting process, the surface of the biomass briquettes would get carbonized under high pressure and high temperture. But the interior parts are still not carbonized completely. So people usually call the end product of this process, biomass briquette or semi-finished charcoal briquettes.
Click Now for Catalogs & Factory Price!Advantages of biomass briquette machines1. After repeated tests on the sawduat briquette making machine, different dies are designed to meet the demand if different raw materials, convenient operation, labor and energy saving.
2. The finished fuel is solid rod, smal cubage, moderate density 0.6-1.2kg/hr.
3. In the rice husk charcoal making machine, the special materials and heat treatment process used in key components extend their service life.
4. Adopting Germany imported bearing with separate lubrication system ensure lubrication and cooling between the moving parts, which makes the coconut shell charcoal making machine operate normally.
5. Automatic control of electric heating device, randomly adjust the humidity of materials to ensure the material molding stability, improving work efficiency.
6. Oil-immersed lubrication system ensures a long working life.
Click Now for Catalogs & Factory Price!biomass briquette machines plant flowchart1. Biomass Raw Materials (sawdust, rice husk, coconut shell, etc) →
2. Crushing (crusher machine) →
3. Conveyor →
4. Drying (dryer machine) →
5. Briquetting (biomass briquette machines) →
6. Semi-finished Charcoal Briquettes (surface charred briquettes which are also known as wood briquettes or biomass briquettes)→
7. Charring(Coking furnace) →
8. Final Charcoal Briquettes
Click Now for Catalogs & Factory Price!
Click Now for Catalogs & Factory Price! Projects of biomass briquette machines
Click Now for Catalogs & Factory Price!Why choose GEMCO biomass briquette machines
Click Now for Catalogs & Factory Price!All of our cocconut shell charcoal making machine has the certifications of CE. ISO and other professional pantent. Of course, if you need other certifications, such as original certification, we can also supply for you.
