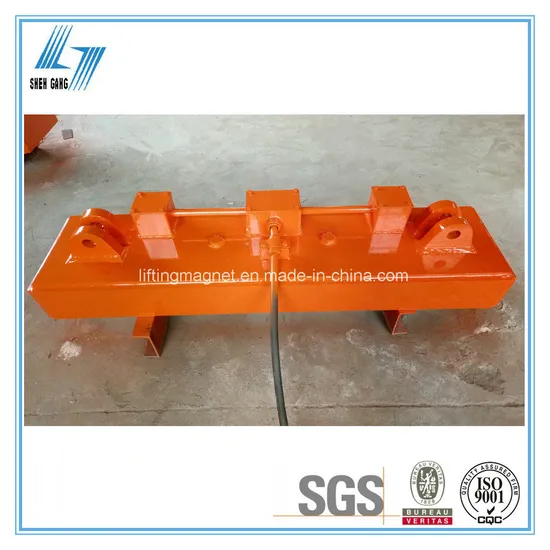

Crane Type Electro Magnet Lifter for Steel Plate

Product Description

Introduction:
Specially designed for lifting and transporting steel plate of medium-thickness. Considering possible bending and deforming may affect safe transportation when lifting long steel plate, please use the combination of several electromagnet. As to medium-thickness steel plate(6mm~32mm), the space length of electromagnets is 3~4m, the space length of extension parts of both ends is half of the space length.
Features:
According to lifting pieces, the series is divided into type 350 and type 400
** Type 350 is suitable for medium-thickness plate factory, ship building factory, and machinery manufacturing factory, it adopts magnet regulating control method, and can lift one piece or certain pieces of steel plate
** Type 400 is suitable for transporting as many as possible pieces at a time. According to customer's requirement, we also can design and manufacture high temperature type products which used for lifting and transporting steel plate below 700° C.
Overall dimension and Product Photos:
Technical Tata:

Model		Normal temperature type(below 100 centigrade)								High temperature type(below 700 centigrade)
		MW84-12040L/1		MW84-16040L/1		MW84-20040L/1		MW84-24040L/1		MW84-13042L/2	MW84-17042L/2	MW84-21042L/2	MW84-25042L/2
Overall dimension (mm)	A	1200		1600		2000		2400		1260	1680	2100	2500
	B	400								420
	C	1020		1000		970		890		1040	1050	1000	990
	D	400		700		800		700		500	700	800	900
	E	110
	F	180
	G	32
Mass(kg)		550		690		840		910		650	850	1050	1250
Cold-state power(KW)		3		3.2		5		6		2.4	3.7	4	4.8

Complete set of Equipment:
· Electro Magnet Lifter
· Spring type cable reel with cable
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type)
· Cable connector / Quick coupling
Product Application:
Customers Visit and Certification:
FAQ:
Q:Why customers choose us?
A:We are a professional lifting electro magnet products manufacturer with 17 years experience in China.We have our own factory which can offer better price, control delivery time better based on strict quality inspection and good after-service guarantee.
Q:What is your payment terms?
A:Payment≤USD1000.00,100% T/T in advance;Payment>USD1000.00,
30%T/T in advance,70% T/T before delivery. We support T/T, Western Union,LC at sight, SWIFT/Money Gram/Paypal etc..
Q:How long is your delivery time?
A:Standard model is within 13 work days after deposit confirmed.
Customerized model will depend on actual production needs.
Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
About Enquiry:
To help you get the best electro lifting magnet for your application, we should have the following information:
--For steel plate:
1.What about the plate size: length, width and thickness?
2.How many plates need to be transported for one time?
3.How about the temperature of the plate,normal temperature or high temperature?
--For overhead crane:
1.How about the loading capacity of the crane, single beam or double beam?
2.What is the distance from crane to ground?
--Power supply information: Voltage, DC or AC? Frequency
(More details, please feel free to contact us directly. )
Lifting Magnet Series:
--application for transporating steel scraps, steel plates, billets,etc.
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.

---
