Cryogenic Stainless Steel Dewar Sizes Tank for Liquid CO2 O2 N2 Argon LNG

Product Description

Horizontal/Vertical Welded Insulated Cryogenic Cylinder/Dewar Tank for Liquid Gas
Description What't the advantage of Dewai bottle? 1,The weight of the gas cylinder is about 116Kg, and the total weight after being filled with liquid gas is about 300Kg, while the total weight of the compressed gas in 30 cylinders with the same amount of gas is nearly 2000 Kg. Therefore, the auxiliary cost oftransportation and manual handling can be greatly reduced.
With automatic pressurization control, saving circuit, built-in vaporizer, pressure and liquid level indicating device, high
integration.
2,The storage pressure is low, and the multi-level safety protection device is installed, which has better safety and simple and reliable operation.
3,Large storage capacity, the gas storage capacity of a cylinder is equivalent to nearly 30 cylinders of cylinder gas (oxygen,nitrogen). Therefore, the storage space can be reduced, and the bottle changing operation can be reduced. 195L Dewar manufacturers can improve work efficiency. For centralized gas supply in pipelines, bus investment can be reduced.

product name	LNG Cylinder
Material	steel
Dimension	516×907mm/505x1076mm/505x1391mm/505x1557mm/505x1672mm/505x1766mm/505x1916mm
Weight(Empty cylinder) kg	76kg/83kg/105kg/116kg /124kg/130kg/138kg
Working pressure MPa	1.38 MPa
Volume L	80L/100L/150L/175L/195L /210L/232L
effective volume L	72L/90L/135L/157.5L/175.5L/189L/208.8L
Safety valve open pressure Mpa	1.59 Mpa
MOQ	1 set

Types of cylinder
Vertical type

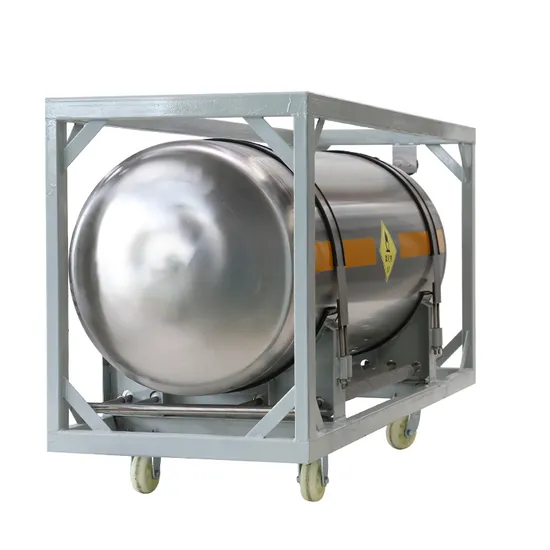

Horizontal type
Details of cylinder
Production process
More cylinders to choose
Package of welded insulated cylinder
FAQ for welded insulated cylinder
Q: What products you can provide ?
A: We specialize in producing LPG cylinder, LNG cylinder, Cryogenic Liquid Storage Tank (LO2, LN2, LAr, LCO2 and LNG), etc. Any interests you can feel to contact us for details. Thanks.
Q: What is your production standard?
A: Our company has obtained the A2 and C2, C3 Pressure Vessel Fabrication Certificates.
Q: Have you supplied cylinders to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks for them with different sizes. The biggest size we ever provided is 3000m3 ordinary pressure storage tank.
Q: What can you gurantee?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 14 months from the date on which the equipment has been delivered, whichever comes first.

---
