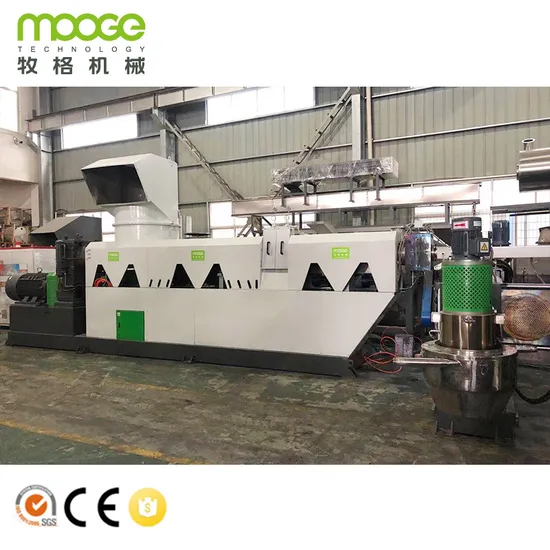

two stage die face knife cutting plastic granule making pellet machine

Product Description

Product Description
This two stage die face knife cutting plastic granule making pellet machine is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PE PP material, such as clean HDPE, LDPE, LLDPE film flake, clean PE bag, etc.
The material go through transmission system, extrusion system, cooling system and collect system will turn to be clean perfect pellets for reuse.
You can choose double stage or single stage extruder according to the cleanness of your material.
This two stage die face knife cutting plastic granule making pellet machine can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the pelletizing line according to client's material and product requirement. Product Parameters
RDS Series Single Stage Compacting Die-Face Cutting Pelletizing Line
Below are the main parameters for reference.

Model	Screw Diameter	Screw L/D	Main Motor Power	Capacity
RDS-SJ85	85	28-33:1	55KW	150-200kg/hr
RDS-SJ100	100	28-33:1	75KW	200-300kg/hr
RDS-SJ130	130	28-33:1	90KW	300-400kg/hr
RDS-SJ150	150	28-33:1	110KW	400-500kg/hr
RDS-SJ180	180	28-33:1	132KW	600-800kg/hr
RDS-SJ200	200	28-33:1	160KW	800-1000kg/hr

RSS Series Double Stage Compacting Die-Face Cutting Pelletizing Line
Below are the main parameters for reference.

Model	Screw Diameter	Main Motor Power	Screw L/D	Second Screw L/D	Capacity
RSS-SJ85	85	55KW	28-33:1	10-12:1	150-200kg/hr
RSS-SJ100	100	75KW	28-33:1	10-12:1	200-300kg/hr
RSS-SJ130	130	90KW	28-33:1	10-12:1	300-400kg/hr
RSS-SJ150	150	110KW	28-33:1	10-12:1	400-500kg/hr
RSS-SJ180	180	132KW	28-33:1	10-12:1	600-800kg/hr
RSS-SJ200	200	160KW	28-33:1	10-12:1	800-1000kg/hr

Working Flow
* Working Flow (Double Stage Compacting Die-Face / Water-Ring Cutting Pelletizing Line for example)
---- Belt Conveyor: Feeding PE film or bag into compactor. If there is any metal inside the material, metal detector is suggested.
---- Compactor: With multi-blades crushing and compulsively compress the material into the extruder, ensure high efficient and stable production.
---- Single Screw Extruder (first stage): Plasticizing material with high temperature
---- Vacuum Pump System: Exhaust the moisture and air with vacuum pump
---- Hydraulic Screen Exchanger: Filter material impurity.
---- Single Screw Extruder (second stage): Further plasticizing and filtering material with high temperature.
---- Hydraulic Screen Exchanger: Further filter material impurity to make production more stable.
---- Die-Face Cutting Machine: Cutting pellets with high speed rotation.
---- Water Tank: Cooling the pellets with cold water.
---- Dewater Machine: Drying the pellets.
---- Vibration Screen: screen out bigger size pellet and keep good uniform pellet
---- Air Blower: Blow good pellets into the silo.
---- Storage Silo: Collecting pellets.
---- Control Cabinet: Control the line on/off (famous brand such as Schneider, ABB, etc.) Detailed Photos
Compacting Force Feeder
Function: With rotary and fixed blades further cut the material and compress the material into the extruder
>With glass window to check inside working.
>Barrel base with the water cooling system
>Temperature controlled by magnetic valve
>The barrel touched material all made by stainless steel.
Single Screw Extruder
Function: with high temperature melting the materia
>Extruder made by sturdy frame, heavy. No vibrating when the machine is running
>The whole frame where installed the gearbox, motor and screw has done the milling working.
>The frame is build up by the square tube and thick steel on top.
Hydraulic Screen Changer
Function: Filtering the material impurity
>Double position board model
>Board made by 38CrMnAl with forging and heating treatment that won't deform after heating up.
>With hydraulic station and air accumulator tank one set
>With the magnetic drive valve to control the working
Die Face Cutting System
Function: Cutting the material into pellet with high rotary speed >Cutting speed adjust by inverter with "DELTA" from Taiwan
>Blades are made by SKD-11 good steel
>Die mold made by the 38CrMoALA material with forging treatment, surface been nitriding treatment and buffing.
Waste PE Film FInal PE Pellet
Packaging & Shipping
• For the loose cargo we will packing by wooden box
• For the full container loading we are packing the machine by film and some on pallet accordingly
• We can ship the goods by air or by sea
• We will send pictures of cargo loading to our client to check and keep recording
• We can send cargo to client's warehouse to loading Company Profile
JIANGSU MOOGE MACHINE CO.,LTD is a professional manufacturer specialized in designing, developing, manufacturing, and servicing a complete line of plastic recycling machine with more than 10 years' experience.
We are mainly engaged in high efficient plastic recycling machine including the PET bottle washing line, soft plastic pe film/pp bags washing line, rigid plastic bottle/bucket washing line, plastic pelletizing line, shredder machine, crusher machine and other related auxiliary machine.
After Sales Service
• Pre-sale: we giveour client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer. FAQ
* In order to match your requirement and provide you a proper quotation, please advise:
• What material do you want to recycling? PE film? PP woven bag? HDPE/PP bottle? or other plastic?
• What capacity(kg/h) do you want?
• What is the final size(mm) of granules you want?
• Other special requirements about the two stage die face knife cutting plastic granule making pellet machine you want.

---
