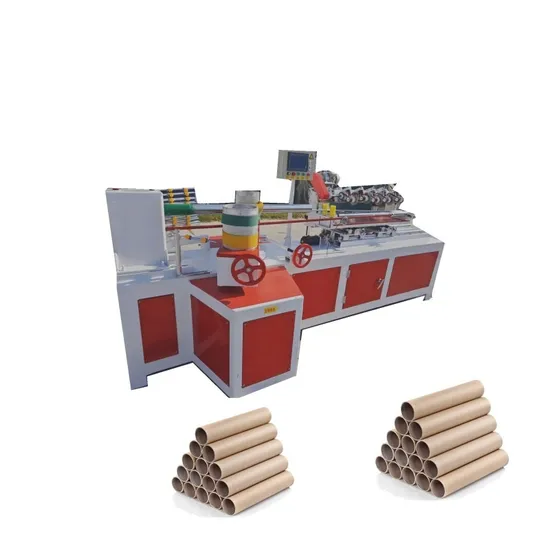

30~150mm Inner Diameter Spiral Paper Cardboard Tube Core Machine Making

Product Description

20~130mm Inner Diameter Spiral Paper Cardboard Tube Core Machine Making Product Description Usage
Common model, it is used for making tubes for all kind of tape, jumbo roll, chemical fiber, paper cans, etc.
Function description:
The design concept is simple, compact and stable.
Production use reference :
Paper tubes for chemical fibers, various packaging composite cans, and various small industrial paper core tubes.
The production of spiral paper tubes is completed at one time from gluing, winding, to multi-knife cutting as required.
Features:
1. The main body is made of thick and heavy-duty steel plates that are welded after CNC cutting. The frame is stable and not easily deformed, and the vibration is small.
2. The main transmission adopts hard tooth surface full oil bath chain transmission , low noise, low heat generation, high speed and high torque.
3. The main motor adopts vector type high torque frequency converter for speed regulation .

Detailed Photos
Feature
Cheaper price, high popularity, high performance. Adopted PLC logic control system. Main motor is adopt vector type of high torque inverter for speed regulate Positioning length by photo electricity with auto speed changing function, in order to meet high cutting precision. Modern electric layout designing for easy and science using, maintaining and repairing. There is a remote controller for easy operating(to stop or slow down the machine when lacked paper) Low noise driving designing. Adopt double size gluing and independent stainless steel gluing box, with imported silicone tube
Product Parameters

Tube diameter	20-130mm
Number of paper layer	12 layers
Tube max thickness	8 mm
Rewinding noses	2
Rolling core mold fixing method	flange tightening
Winding head	Two head single belt
cutting method	Multi-knife online arbitrary cutting
Gluing method	Single/double side glue
Fixed length	Encoder pulse fixed length
Operator	1-2
Productive speed	3-30 m/min
Way of cutting	Pneumatic
Way of gluing	Double sides
Paper shaft type	Crisscross
Way of tube down	Withdraw
Power input	380V 3phare 4wire 50Hz

Certifications
Packaging & Shipping
Company Profile

Qingdao YiDaFa International Trade Co., Ltd is located in Free Trade Zone, Qingdao, Shandong, China. The registered capital of our company is RMB 5 million. We have 6 production areas, 129 team members, including 39 technical experts, who have rich experience in the field of paper machine design. The main products of our company cover a variety of paper machinery, paper products processing machinery and related parts. We have done this business for more than 20 years in China. In 2014, we founded international trade department in order to stand in the international market. Our mission is to be the leader in paper machinery field. Our principle is Science, Quality and Green. As we know, environmental pollution and waste of resources are two prominent problems in the traditional paper industry. To advocate the concept of global environmental protection, each of our paper machines has the advantages of energy saving, high efficiency and reducing pollution. Especially in waste water recycling use, we have unique processing technology. Welcome any customers from all over the world to contact us freely. It is our sincere hope that we can establish a long-term and stable friendship with our strategic partners. Then we will work and explore together to create a brilliant future.

FAQ FAQ:
1.How to install and maintain the machine?d
Firstly, we will provide the installation guild with the machine for your reference.
Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price. In fact, the wearing parts are standard parts that you could get it in your country at your convenience.

---
