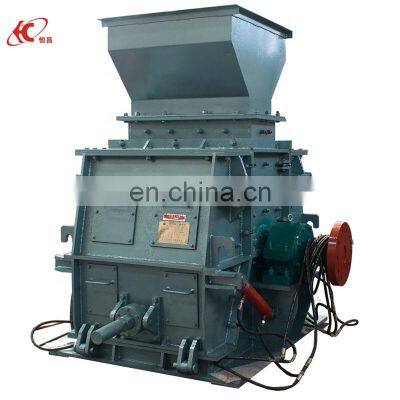

Reversible crusher
The reversible crusher can handle various coarse, medium and fine materials ores and rocks (granite, concrete, limestone, etc.) with a particle size not greater than 120-500 mm and a compressive strength not exceeding 320 MPa. It is widely used in hydropower, highways, Artificial sandstone, crushing and other industries.
Details Images
Working principle
The rotor is arranged in the center of the crusher, and the rotor drives the hammer head to perform high-speed circular motion. The rotor can rotate in positive and negative directions. Symmetrical on both sides of the rotor, there are adjustable crushing tooth plates. The trajectory of the head constitutes an efficient crushing cavity. The material falling from the feed port is first hit by the high-speed rotating hammer head against the lining plate, and then rebounded by the lining plate toward the hammer head or other crushing tooth surface, the material is crushing The chamber jumps back and forth in this way, and collides with each other during the movement, and is further broken, and the material with the designed particle size is discharged from the discharge port at the bottom of the crusher. The discharging granularity can be adjusted and controlled by the regulating mechanism.
Our Advantages
Hammer head
The hammer head is made of new high-quality multi-element high chromium manganese steel composite casting, and its service life is several times that of the general hammer head.The hammer head is fixed by bolts for easy replacement. After one side is worn, the other side can be replaced for continued use.
Spindle
The material of the spindle is made of high quality alloy steel, which is processed by ultrasonic inspection for quenching and tempering.High strength steel carburizing heat treatment was used to improve the wear resistance of hammer disc and hammer hole.
Lining plate and strike plate
In order to prevent the abrasion of the frame, the inner wall of the frame is made of manganese steel. The striking plate is made of high-strength steel and quenched and strengthened. The superior abrasion resistance and impact resistance of the lining and striking plate are guaranteed.
Certifications
Hammer crusher CE Certification
ISO Quality System Identification
Motor CE certification
Product Paramenters
Model
| PCKW0908
| PCKW1012
| PCKW1214
| PCKW1414
| PCKW1416
| PCKW1418
|
Rotor size（rotor diameter*length）mm
| 900x800
| 1000x1200
| 1200x1400
| 1400x1400
| 1400x1600
| 1400x1800
|
Max feeding size（mm）
| 100
| 100
| 100
| 150
| 150
| 150
|
Output size（mm）（70-80%）
| 0-8
| 0-8
| 0-8
| 0-8
| 0-8
| 0-8
|
Capacity（t/h）
| 20-65
| 40-90
| 60-120
| 80-150
| 100-180
| 150-200
|
Power（kw）
| 75-90
| 132-160
| 185-210
| 200-300
| 220-320
| 280-500
|
Weight（kg）
| 6420
| 8187
| 12882
| 13000
| 18000
| 32500
|
