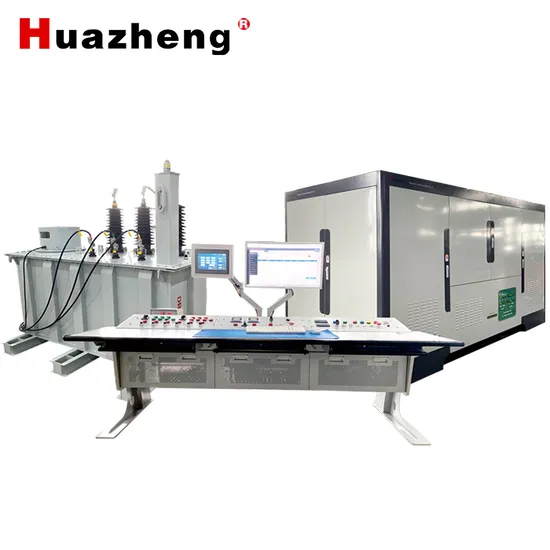

China Manufacturer Price Huazheng Electric Complete Set Comprehensive Automatic Hv Integrated Power Distribution Transformer Test Bench

Product Description

Factory Price Complete Set Comprehensive Automatic HV Transformer Test Bench I.Automatic Transformer Test Bench Test ability:
1)Can meet the capacity of 63000KvA, 110Kv and below the oil-immersed transformer (including S9 S11 S13 and amorphous alloy transformer);
2) It can meet the capacity of 31500KvA, 35Kv and below dry-type transformers;
3) Mine explosion-proof transformers that can meet capacity of 6300KvA, 10Kv and below;
4) Special transformer (need to inform detailed capacity and voltage level when ordering).


II.Automatic Transformer Test Bench Test item:
1) transformer winding resistance test
2) Transformer voltage ratio measurement and connection group number test
3) transformer no-load current (%) and no-load loss test
4) Transformer short circuit impedance (%) and load loss test
5) Transformer power frequency applied pressure test
6) Transformer induced withstand voltage test

III.Automatic Transformer Test Bench Extensible test project:
1) Transformer partial discharge test
2) No-load harmonic test (0-31th harmonic)
3) Withstand voltage test of transformer oil (0-80Kv)
4) Transformer temperature rise test (can automatically draw temperature rise curve)
5) Insulation resistance test (absorption ratio and polarization index)
6) Transformer anti-interference dielectric loss test
7) Lightning impact test.


IV.Automatic Transformer Test Bench Technical Parameters:

NO.	Equipment	Model	Quantity
1,HZBZ-IV Master station for transformer test bench
01	Master station for transformer test bench	HZBZ-IV	1
02	industrial control machine	IPC-610L	1
	Display screen	Samsung stereo screen 27 inches	1
	Printer	HP	1
03	transformer test system software	V1.0	1
2,Test instrument
01	Turn ratio tester	HZ-700	1
02	power analyzer	HZ-300	1
03	Dual channel DC resistance tester	HZ-200	1
04	Insulation resistance tester	common 3125A	1
05	Transformer dielectric loss tester	HZ-6000	1
06	Temperature inspector	8 temperature passageway	1
3, High and low voltage control cabinet (containment structure, it can be hoisted as a whole, convenient and quick, internal wiring completed at once, saving installation and commissioning time).
01	Instrument integration unit one set		1
02	PLC control device	SIEMENS S7-200	1
03	Test project distribution device	400A	1
04	High voltage current metering device		1
	High voltage precision current Mutual inductor	400-200-100-50-20-10-5A/5A Voltage level:22/√3KV Precision grade:0.1	3
05	High voltage voltage metering devices		1
	High voltage precision voltage Mutual inductor	(22.0-11.0-6.6-3.3)/√3/0.1KV Voltage level:22/√3KV Precision grade:0.1	3
4, Equipment
01	Three-phase induction voltage regulator	250KVA(10-650V)	1
02	Intermediate transformer	250KVA	1
03	Frequency doubling generator	10KV	1
5,Test transformer console
01	High voltage test transformer	50KVA/100KV	1
02	Test transformer console	50KVA(Including electric regulator)	1
03	Protection resistance	100KV	1
Accessories	Special high voltage discharge rod
	High voltage test line
	Grounding wire and plug
6, Other
01	Cable and wire	Regulator input: 150mm23*10M Regulator output: 95mm23*10M Intermediate input: 95mm23*10M Intermediate variable output: 25mm23*10M (high voltage line) Multiplier unit input: 25mm23*10M Excitation regulation: 16mm23*10M Multiplier unit output: 16mm23*10M Test transformer input: 25mm22*10M Test line: 50mm23*10M (high voltage line)	1
lightning impulse test system
01	Lightning impulse test system	450KV/20KJ(including 300KV chopper device)	1

Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
