Advanced Woodworking EVA Edge Banding Machine for PVC MDF

Product Description

Technical Paremeters

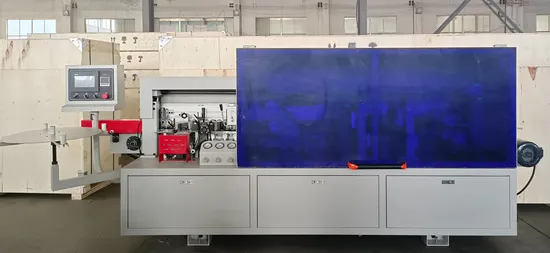

ZD500 Straight edge banding machine
Fully automatic Support customizatio
Excellent quality One-year warranty

Model	ZD500
Thickness of banding	0.4-3mm
Width of banding	10-60mm
Thickness of workpiece	10-60mm
Heating power	1.5kw
Feeding motor power	2.2kw
Glue post motor	0.37kw
End trimming motor	0.55*2 kw
Fine trimming motor	0.75*2 kw
Polishing motor	0.18*2 kw
Feeding speed	13m/min
Air pressure	0.7Mpa
Workpiece length	>=100mm
N.W.	1300kgs
Overall dimension	3670*1000*1600mm

Product Details
Screen Control Panel: #Touch screen is made from Delta(Taiwan) brand PLC control system and operation panel.
#AUTONICS(Korea) brand temperature controller,high flexiable shielded cable,output stability.

Electrical Components:
#Homag(Germany) brand original driver,double protection and never hurt board.
#Delta(Taiwan) brand inverter,power-off protecton.

Glue mechanism:
The glue pot is made of imported special ball bearing,high hardness and super wear-resistant material rubber box,the stripping shaft is patent design.Adhesive surface almost up to 99.999%, glue output can be adjusted.

Conveyor guide rail : #Using bearing steel, chromium plating treatment which is wear-resistance and rust-resistance, high straightness, lower friction, conveying speed is uniform and stable. #Front and rear feeding in/out plate, to ensure the working piece runs stable, more convenient to connect material.
#Conveyor chain is made of Germany high quality silica gel,once die-casting,wear-resistant reach to international standard,smooth and no jump

End trimming:
It has a head-to-head collision protection function to enhance the head-to-head stability.
Fine trimming:
High frequency motor, trimming quantity and radian can be calculated in advance, linear error not exceed 0.01mm.

Scrapping:
Eliminates sub-wave marks caused by non-linear cutting processes during trimming, making the upper and lower parts of the board smoother and neater.
Buffing: New mechanism solves the problem that the commonly used mechanism in the market is not easy to adjust and change the wheel in the wear of the polishing wheel. The new mechanism can be adjusted by turning the hand wheel.
Application
Wide range of applications
More scope of application and wider application
Meet your different needs
Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
We are committed to providing one-stop service for factory production.Replying on the favorable geographical advantages of Qingdao Industrial Park,we have formed a series of panel-type furniture equipment such as table saws,edge banding machines,and CNC routers,as well as solid wood woodworking machines such as:polishing machines,panel machine,press machine etc,which have been exported to lots of countries and regions.We have establish 7 complete system to guarantee all process of orders with timely and effective supervision and feedback.Our company has got ISO9001 international system certificate and CE security certificate for different kind of machines.
Certifications

Exhibitions
Our customer feedback

FAQ
FAQ
Q1: ARE YOU A MANUFACTURER?
A1:Yes.We have 20 years manufacture and export exprience.
Q2: ABOUT THE MOQ
A2: 1 set, and we are OEM,I will give you the competitive price better than market.
Q3: MAY I BUY A SAMPLE?
A3: Of course ,sample order is welcome.
Q4: HOW CAN I PLACE A ORDER?
A4: Just give me your nice inquiry,l will do my best to assist you.
Q5: IF IWANT CHEAPER QUALITY, CAN YOU PRODUCE?A5.Yes, just send us your quality details, such as the material, what cheaper partsinstead etc, we will do that as your request and calculate the price.
Q6: IF IORDER BIG QUANTITY, WHAT'S THE GOOD PRICE?
A6: Please send the details enquiry to us, such as the ltem Number, Quantity for eachitem, Quality request, Logo, Payment Terms, Transport method, Discharge place etc.We will make the accurate quotation to you as soon as possible.

---
