Sts Keypad Prepayment Smart Wireless Three Phase Electirc Meter

Product Description

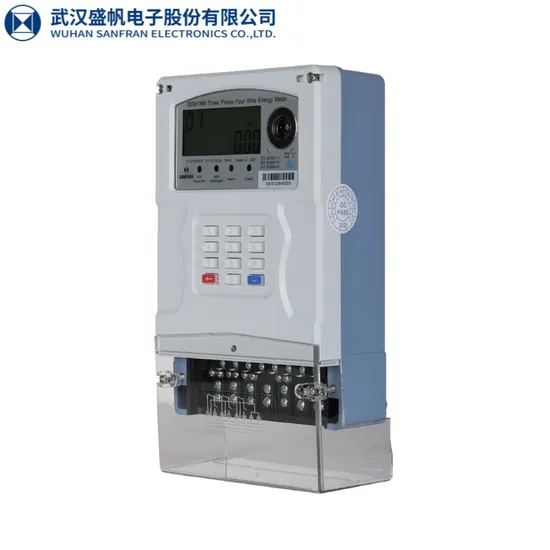

Three phase keypad prepaid energy meter
Introduction:
DTSY395(Z) Three phase keypad prepaid energy meter is a keypad type, automatically connection or disconnection prepaid electricity meter. Built-in wireless communication modem (GPRS/3G/4G/NB-IoT/LoRa) can collect the energy data from the meter and transmit remotely directly to the server platform for energy data analysis. This meter is comply with STS standard, can be widely used for counting the electricity consumption of users over a period of time.
Functions and Features:

★Meter recharge by inputting TOKEN	★Utilities can set TOU price into meter on request
★Ingress protection IP54 waterproof	★Anti-tamper magnetic field protection
★Up to 8 years battery life	★MD(maximum demand measurement)
★Remote connection/disconnection	★Low credit alarm
★Real-time clock	★Overdraft collection
★Check data by inputting the short code	☆NB-IoT, 4G, GPRS, LoRa communication is optional
☆Communication modem can be remotely upgraded

★ Basic features ☆ Extended features
Specification:

Electrical	Nominal Voltage	3*230V
	Working Voltage Range	70%~120%Un
	Frequency	50-60Hz
	Active Energy Constant	400imp/kWh
	Power Consumption in Voltage Circuit	<2W <8VA
	Power Consumption in Current Circuit	<1VA
	Operation Temperature Range	-25ºC-70ºC
	Storage Temperature Range	-40ºC-85ºC
Electric Magnetic Compatibility	AC Insulation Strength	4kV at 50Hz during 1min
	Impulse voltage 1.2/50 us mains connections	8kV
	Electrostatic Discharges	Contact discharge 8kV
		Air discharge 16kV
	Electromagnetic RF Field	27MHz-500MHz 10V/m
		100KHz-1GHz 30V/m
	Fast transient burst test	4kV
	Protection	Class II

Parameters:

Model	DTSY395(Z)
Current(Imax)	3*10(100)A
Accuracy class	Active energy: Class 1.0
	Reactive energy: Class 2.0

Dimension:
LCD Display:
AMI Solution:

---
