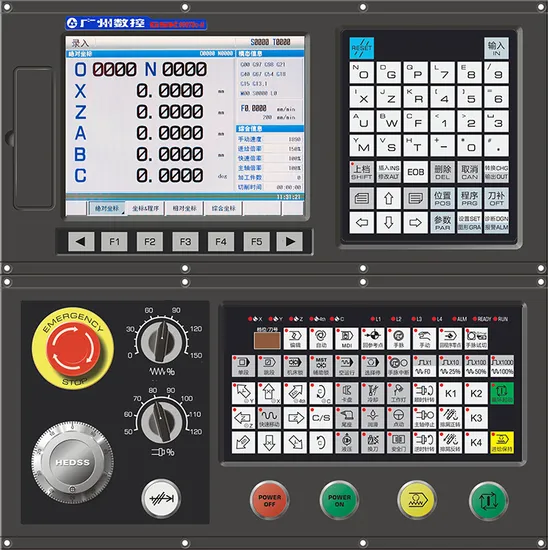

GSK 980TDc Turning Machine CNC System
GSK980TDc is an upgraded version of GSK980TDb and uses 8.4" color LCD. It supports online monitoring of ladder diagram, and provides new functions such as online machine tool commissioning wizard, teaching, auxiliary programming, and polygon turning. The standard GS2000T-N series strong-overload servo unit and servo motor of 5000 ppr encoder has μ level position accuracy and supports I/O unit extension, meeting application requirements of common and special CNC turning machines.

Technical Features

5 feed axes, 2 analog spindles

Minimum control accuracy: 0.1 μm, maximum moving speed: 60m/min

GS2000T-N heavy overload protective servo unit, 5000ppr encoder as the position feedback for servo motor

Adaptive servo spindle for spindle orientation, rigid tapping, cylindrical interpolation & polar coordinate interpolation

Built-in PLC, ladder diagram display online, real time monitoring, extensible serial I/O unit

Handwheel trial cutting, demonstration, interruption

Online machine tool commissioning wizard, auxiliary programming, interface customization, direct input of graphics size, polygon turning

MDI execution in multi-program segment

40M program storage space, 10,000 part programs, compatible program processing through USB flash drive

6-level operation authority administration, 32 time-limited shutdowns setting

8.4-inch true color LCD for multilingual display in Chinese, English, Russian, etc.

Online machine tool commissioning guideline
CNC machine tools used to be commissioned by experienced engineers while the new commissioning wizard classifies commissioning steps for CNC machine tools by function, enabling simple and fast but accessible commissioning not for few engineers.
Auxiliary programming
For traditional CNC programming, programmers have to memorize a large number of instructions and complex programming formats, which makes programming boring and complicated. Auxiliary programming applies CNC programming, which enables easier and simpler programming compared with traditional practice.
Teaching
To design the profiling process, the parts program usually generates coordinate points for programming with the tool moving along the surface of the formed workpiece. The demonstration allows you to record the required coordinate values at ease.
Handwheel interruption
In the automatic mode, the amount of movement generated by the handwheel in operation can be superimposed on that of automatic operation.
Groove machining
The G71II groove cutting enables more efficient machining of workpieces with non-monotonous changes in contour, i.e. with less cutting time and higher machining efficiency compared with the G73
Polygon turning
For traditional polygon machining, power milling cutters are used while polygon turning function is applied to quickly process the polygon specified in the program by changing the speed ratio of the workpiece axis and the tool axis when lower precision is required.

Turn-milling machining supported
They system consists of 5 feed axes and 2 analog spindle, with adaptive servo spindle for spindle orientation, rigid tapping, cylindrical interpolation & and polar coordinate interpolation, and capable for turning-milling machining.


Technical specification
