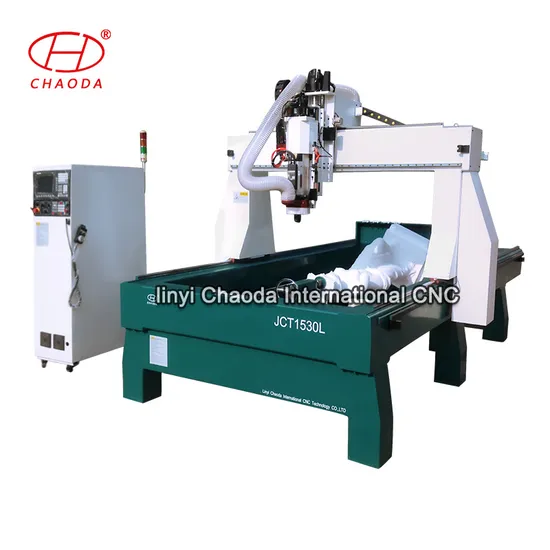

Wood Carving CNC Router Machine with 4 Axis for 3D Sculpture

Product Description

wood carving cnc router machine with 4 axis for 3d sculpture
All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Machine is with a big rotary device, can make different kinds of 3d sculptures, statues, figures, idols, landscapes, stage props, park designs, etc. Machine is with a flat table, can do deep flat works, like 3d reliefs, 3d molds, door furniture, acrylic words/letters, landscapes , etc. Advanced Ncstudio control system, very stable and easy to operate.

Model No.	JCT1530L
Flat working size	1500*3000*500mm
Rotary working size	1000mm diameter, 2500mm length
Lathe bed structure	T-extrusion, Thick Steel frame
Table	Removable, T-slot with clamps
X structure	Rack and pinion, linear square rail
Y structure	Rack and pinion, linear square rail
Z structure	Ball screw, linear square rail
Reposition accuracy	±0.02mm
Max. travelling speed	0-60000mm/min
Max. working speed	0-30000mm/min
Spindle	9kw air cooling ATC spindle
Tool magazine	Linear type auto tool changer, 8 tools ability
Driving system	Japan YASKAWA servo motor and driver
Operating system	4 axis Ncstudio with Screen
Operation language	G code
Working voltage	AC380V, 3-phase, 50Hz
Working materials	Eps foam, Styrofoam, Woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc.

1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas

---
