Hot Sale Solid Liquid Separator for Chicken Cow Pig Dung Manure

Product Description

Cow Dung Pig Manure Dung Chicken Manure Dewatering Machine Solid Liquid Separator Manure Dehydrator for Poultry Farm Livestock Farm Product Description

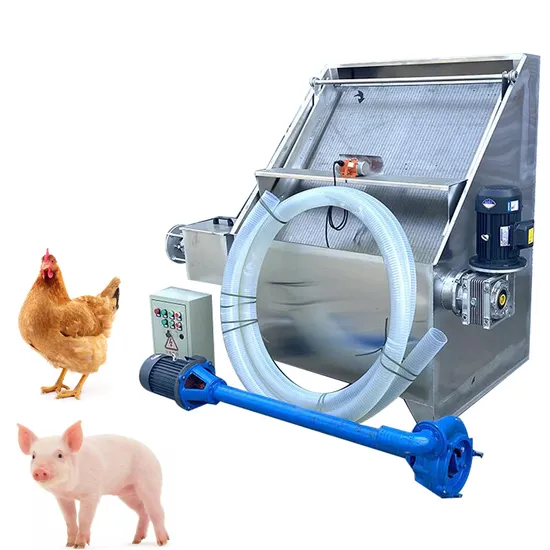

This Inclined Screen Solid Liquid Separator consists of a motor, frame, screening mechanism, screw conveyor mechanism, screw extrusion mechanism, etc. It is mainly used for livestock and poultry manure treatment.
The structural principle of the solid-liquid separation joint: the manure produced in the breeding farm is concentrated into the sewage collection tank through pipelines. The sewage collection tank is equipped with a paddle mixer. After the materials are fully mixed, they are pumped to the separator material screening machine through a cutting sewage pump and vibrated. The machine filters out most of the feces and sewage through the inclined screen, and the remaining residue falls into the lower auger, and is pushed by the auger into the extruder of the machine. Through the principle of screw extrusion, the moisture in the material is forced to be extruded by itself. The mesh screen is squeezed out under the action, and the treated feces is eliminated.
The feces solid-liquid separator is equipped with a control device, is simple to operate, easy to maintain, has a large processing capacity, has low power consumption, and is suitable for continuous operation. It can greatly improve the efficiency of dehydration treatment of chicken manure, pig manure, cow manure and other livestock manure. It has the characteristics of corrosion resistance and wear resistance.
Features
1. Large processing capacity
It is easy to clean and can handle a large amount of water in a single machine.
2. 304 stainless steel screen
The 304 stainless steel screen and spiral auger blades are stronger and more corrosion-resistant, greatly increasing the service life of the machine.
3. Pure core motor
Stable operation, strong power and durability, eliminating the trouble of maintenance.
4. Control system
It is adjustable and can adjust the moisture content of the discharge material and the processing capacity of the separator through the pressure adjustment device.
5. Extrusion drying box
The components and pipe fittings are made of 304 stainless steel, which has high extrusion strength, corrosion resistance and good drying effect. There is no back pressure plate on the sludge outlet side of the sludge thickener.
Product Parameters

Model	JWM-800	JWM-1200	JWM-1500
Voltage	220V/380V	220V/380V	220V/380V
Main power	4	5.5	7.5
Pump power	4	4	4
Inlet/overflow outlet	76	76mm	76
Drain	102	102mm	102
Pumping raw feces	30m3/h	40m3/h	50m3/h
Out of the dry shit	6m3/h	8m3/h	12m3/h
Weight	320kg	380kg	430kg
Dimension	1850x1600x1100mm	2250x1600x1160mm	2650x1600x1160mm

Product applications
Detailed Photos
Packaging & Shipping
Company Profile
Zhengzhou Jiewei Machinery Co. , Ltd. is located in Zhengzhou City, Henan Province, henan province is a relatively large-scale stacked screw, flat, sludge dehydrator, slanting screen solid-liquid separator and other environmental protection equipment production base, is the domestic earlier specialized in environmental protection equipment design and Development Enterprises, national patent holder of many sludge dehydrators. The workshop covers an area of 13,000 m and has 36kw large-scale laser cutting machines, 1 automatic ring grinding machine for screw stacking machine, 1 automatic ring leveling machine, 5 large lathes and other advanced equipment, from laser cutting, turning of spiral axis to assembling of finished products, all the processes are finished by independent machining, which provides a strong guarantee for the material and quality stability of the equipment. The screw-type and plate-type sludge dehydrators produced by Zhengzhou Jiewei Environmental Protection Co. , Ltd. serve well-known enterprises such as petrochina Qinghai Oil Field, CLP Group 4, Mengniu Dairy Group, Wen Group, Laigang Group of Laiwu, Jinluo Group, Kangshifu group, etc. , and with Lande Environmental Protection, Beijing Xiaoqing Environmental Protection, Anhui Guozhen Environmental Protection, Beipai group and hundreds of environmental protection engineering companies to reach strategic cooperation, many environmental protection engineering companies designated by the Stacked Screw Dehydrator procurement unit.
