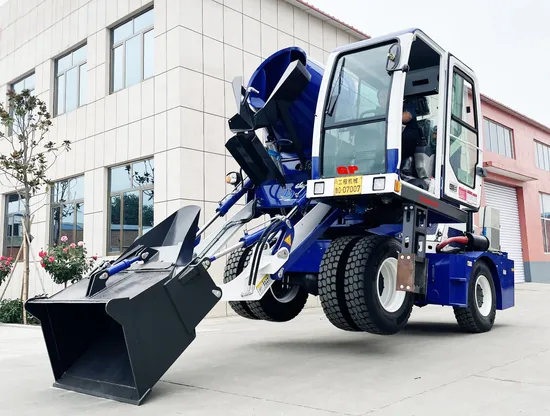

Elf Loading Concrete Mixer with Hydraulic Hopper with/Without Water Tank Diesel Engine

US$29,500.00
1 Piece
US$24,500.00
2+ Pieces

Basic Info.

Model NO.
GWM28
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
12.5-18m³/H
Feeding Height
1800-2000mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Blue
Water Tank
700-800L
Bucket Capacity
0.5-0.7cbm
Diesel Engine
Yuchai Brand
Weight
4500kg
Transport Package
Naked
Trademark
GP
Origin
Jiangsu
HS Code
8427109000
Production Capacity
500unit/Month

Packaging & Delivery

Package Size
420.00cm * 150.00cm * 240.00cm
Package Gross Weight
4515.000kg

Product Description

Product Description

Description of the advantages of the product
1,Drive mode:the engine is directly connected to the 280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive.
2,Driver's seat: widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat.
3,Hydraulic system: Open type oil, plunger type motor, two gear pumps to participate in the work.
4,Joystick: two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank.
5,Clay Groove: equipped with one 150CM Removable Chute to increase the length of discharge.
6,Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine.
7,Braking: use a small servo pump to enable dual circuit independent braking, and use a single wheel 4-piston vehicle 16 piston to increase the double brake caliper.
8,Steering: Articulated steering with high pressure bearing.
9,Other: Q345 manganese steel frame, excavator luxury cab, driving impact, cement bucket, air conditioning.
PARAMETRERS
Item characteristic GWM28 GWM35 GWM40
1 Mixing tank output
capacity
2.8cbm 3.5cbm 4.0cbm
2 height of the discharge
port
1800m 1800mm 2000mm
3 cab and the tank rotate
horizontally
270°(left 90°+ right 180°)
4 output capacity 12.5cbm/h 15.5cbm/h 18cbm/h
5 diesel engine (YUCHAI brand) YCD4102(supercharged
type)
YCD4J22T-116 YCD4J22T-125
6 4 cylinders
7 water-cooled,
8 2200rpm 2400rpm 2600rpm
9 rated power 78KW rated power 85KW rated power 91KW
10 Drive mode engine directly connected to torque converter
11 Gradeability 40° 40° 40°
12 speed low speed:0-25km/h
13 high speed:0-40km/h
14 Bucket capacity 0.5cbm 0.5cbm 0.7cbm
15 Removable Chute 1500mm
16 tyres ( vacuum tire) 12R-22.5 12R-22.5 16R-22.5
17 Power System 24V
18 Fuel tank 130L 130L 135L
19 Water tank 700L 700L 800L
20 hydraulic oil tank 130L 130L 135L
21 Weight 7500kg 8500kg 9200kg
22 overall dimension(mm) L*W*D:6900*2600*3300 L*W*D:7100*2750*3300 L*W*D:7600*2950*3400
23 wheelbase:2903 wheelbase:2903 wheelbase:3000
24 distance between
tyres:1800
distance between
tyres:2100
distance between
tyres:2150
25 Turning radius:2900 Turning radius:2900 Turning radius:3000
26 cabin closed cabin with AC
