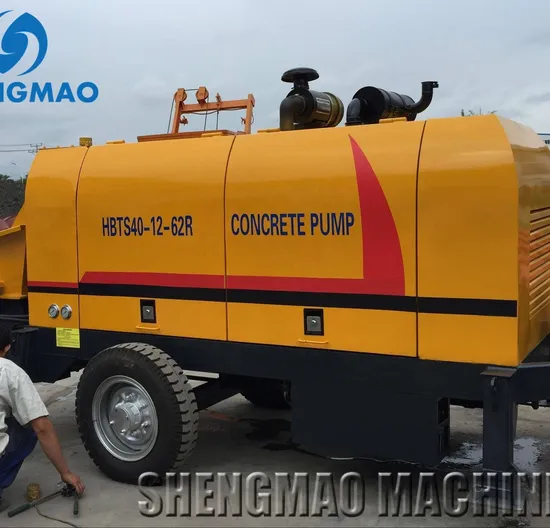

Popular Hbts40r Diesel Concrete Trailer Pump Concrete Pumping Equipment

Product Description

Product Display

Items		Units	Parameters
			HBTS40-12-82R	HBTS60R	HBTS90R
Main parameters	Max. theorectical concrete delivery capacity (high/ low pressure)	m3/h	40/26	84/45	95/55
	Main hydraulic pump		Korean Kawasaki	Korean Kawasaki	Korean Kawasaki
	Max. concrete pumping pressure (high/low pressure)	Mpa	12/7.6	13/7	18/9.3
	Distribution valve type		S valve	S valve	S valve
	concrete conveying cylinder bore*stroke	mm	Ф160×1300	Ф200×1650	Ф200×1800
	Hopper capacity	L	400	800	800
	Feeding height	mm	1100	1400	1400
	outlet diameter	mm	Ф125	Ф180	Ф180
Power system	diesel engine brand		Weichai	Weichai	Weichai
	diesel engine power	kw	82	129	176
	rated rotate speed	r/min	2100	2200	2200
Hydraulic system	hydraulic circuit form		Open circuit	Open circuit	Open circuit
	pumping system oil pressure	Mpa	31.5	32	32
	Mixing system pressure	Mpa	6-8	6-8	8
	Capacity of oil tank	L	370	370	580
Max. concrete delivering distance (vertically/horizontally)		m	160/500	180/1000	360/1200
Other parameters	Max. aggregate diameter	mm	30-40mm	40/50	40/50
	Inside diameter of delivering pipe	mm	Ф100	Ф125	Ф125
	Overall size: length*width*height	mm	4800*1850*1700	5800*2000*1750	6000*2200*2250
	Total weight	kg	4500	5000	6500

Product Description
Concrete pump is used to deliver concrete to job site above ground or underground, such as high-rise building or tunnel
construction. Our concrete pump can deliver concrete to about 200 meters in height and 500 meter in length.
We use world famous brand for the main parts of our concrete pump which can ensure the performance of the machine.
All our concrete pumps are equipped with wheels and remote control, it is very easy to operate and move to other job sites.
Currently, we have 10m3/h, 20m3/h, 30m3/h, 40m3/h, 50m3/h, 60m3/h, 80m3/h and 90m3/h electricity powered or diesel-powered concrete pump for you to choose. Welcome to contact us for details and quotations.
Product Parameters
HBTS10R Diesel Concrete Pump
Capacity: 10 m3/h
Diesel engine Brand: Weichai
Main Hydraulic Pump: Zhenghai
HBTS20R Diesel Concrete Pump
Capacity: 20 m3/h
Diesel engine Brand: Weichai
Main Hydraulic Pump: Zhenghai
HBTS40R Diesel Concrete Pump
Capacity: 40 m3/h
Diesel Engine Brand: Weichai

HBTS60R Diesel Concrete Pump
Capacity: 60 m3/h
Diesel Engine Brand: Weichai

HBTS80R Diesel Concrete Pump
Capacity: 80 m3/h
Diesel Engine Brand: Weichai

HBTS90R Diesel Concrete Pump
Capacity: 90 m3/h
Diesel Engine Brand: Weichai

Concrete pump with crawler
Capacity: 30m3/h to 90m3/h Both diesel type and electric type are available
Concrete pump with trailer
Capacity: 30m3/h to 90m3/h Both diesel type and electric type are available

Detailed Images
Machine Parts
Name: diesel engine
Brand: Weichai
Original: China
The best diesel engine here in China. It can ensure the power supply of the concrete mixer pump.


Name: Hydraulic pump
Original: Korea
Hydraulic pump is one of the most important parts of concrete mixer pump, because it generates hydraulic pressure to deliver concrete to the job site.


Name: Hydraulic oil pipe
Original: Italy
The working hydraulic oil pressure is 10 Mpa, so the hydraulic oil pipes must be very good quality to sustain the very high hydraulic oil pressure.

Name: PLC
Original: Japan
We all know the importance of PLC to a machine. Even all parts of the machine is good, but the PLC quality is poor, the machine can not work well. OMRON PLC is one of the best in the world.

Our Service

Pre-Sales Service
* Providing solution for your construction project;
* Providing design drawing as per your requirements;
* Providing professional quotation for your inquiries.

After-Sales Service
* Machine installation and test running;
* Operators trainning and spare parts supply;
* Machine problems solving (by phone or job site visiting).
Packing & Delivery

Packaging
Size	4800 (L) * 1850 (W) * 1700 (D)
Weight	4.5 T
Packaging Details	The concrete mixer pump will be delivered in container. It will be fixed inside container by steel wires to prevent it from bumping into container during shipment; Some small parts will be packed with carton box.
transportation cost	The price 26500USD only includes the shipping cost from China sea port to Manila port. The transportation cost from Manila port to customer's job site should be paid by customer.
