Hydraulic Hot Press Machine for Plywood MDF Particle Board

Product Description

Hydraulic Hot Press Machine for Plywood MDF Particle Board

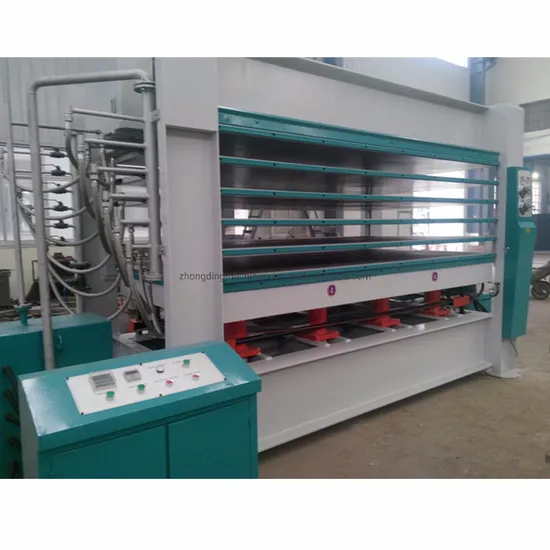

Machine picture:
Technical Specification:

Total pressure	100ton
Dimension of hot platen	2500x1300x42mm
Number of layers	5 layers
Stroke	80-150mm
Diameter & stroke of oil cylinder	100mm x 200mm
Number of cylinders	optional
Heating medium	thermal oil
Hot platen open way	automatically
Closing speed	40mm/s

Advantage:
All 3 pumps we use Vane Pumps. The others use Gear Pumps. Vane pumps with lower noise than gear pumps. So the working life is longer than gear pumps. The surface roughness of our platen is 0.8μm. The better among the others is just 1.6μm. This will keep the heating averagely. This is very important. Our machine base is type H steel. The others use welded steel plate. Type H steel is much stronger than the welded steel plate. Welded steel plate will be bent easily.
Details:
Order terms:
1) Term of payment: T/T 30% deposit and the balance is paid before delivery
2) Delivery: 15-20days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400
8) Certificate: CE
FAQ: Q: Are you a manufacturer or a trading company?
A: We are the manufacturer with 9 years experience.

Q: What kind of products do you have?
A: We produce and sell woodworking machines including panel saw, edge banding machine, press machine, multiple drilling machine, gluing machine, sanding machine and any other woodworking tools and equipments.

Q: Do you have CE or ISO certification?
A: Yes we have both.

Q: What's your warranty?
A: We offer one year warranty.

Q: Do you offer oversea after-sale service?
A: Yes if necessary.

Q: What's your advantage comparing with other suppliers?
A: With 9 years of experience, we have built a complete operating system including ordering process, production, quality control and after-sale service which helps both sides a lot in communicating, saving the cost, ensuring the quality and solving the problems.
Package:
About us:
Qingdao Zhongding Machinery Co.,Ltd is a professional manufacturer in woodworking machine. Our products include:
-Panel saw
-Edge banding machine
-Multiple drilling machine
-Press machine
-Gluing machine
-Sanding machine
-Other woodworking machines
We are looking forward a long term cooperation with our customers and offer high quality products&service with our passion.

---
