China Stainless Steel Tray Drying Oven for Herbal, Roots, Flower, Sugar, Salt, Medicine, Vegetable, Fruit

Product Description

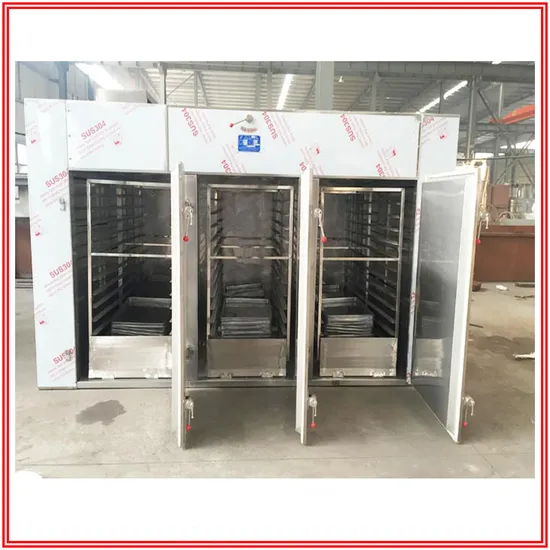

Hot air circulation drying oven/tray dryer introduction:
Hot air Drying machine Application:
Tray drying machinen/ Hot air circulating oven is also called tray dryer, it is for heating the pharmaceutical, chemical, food, agricultural products, aquatic products, light industry materials, curing, drying dehydration. Such as raw materials, medicine water, extracts, powders, granules, dehydrated vegetables.
Structure of tray dryer/hot air circulation oven:
Features:
1. This machine is kind of hot air circulation drying oven machine, it is widely used in food industry, pharmaceutical industry, chemical industry, and other industries.
2. This drying oven machine is applicable to dry and dewater the vegetables, fruits, Chinese medicinal herb, pigment, baking finish, and other materials.
3. This drying oven adopts axial flow fan, equipped with automatic constant temperature control system and computer control system for choice. The thermal efficiency of this drying oven can reach about 70%
Heating source: electricity or steam or oil or gas
Heating temperature: 30-140ºC (use steam); 30-300ºC (use electricity)
We costumize trays with holes or without holes, mesh tray, non-sticky tray
Tray dryer has many different models: 24trays, 48trays, 96trays, 144trayss, 192trays, etc
Techinical Specification:

Model	Evaporation eara(sqm)	Volume(mcbm)	Drying capacity (kg/batch)	Steam consumption (kg/h)	Heating powder (kw)	Fan volume (cbm)	Fan Power (kw)	Dimension (mm)	Weight kg)
CT-C-0	7.1	1.3	60	10	9	3450	0.45	1380*1200*2000	820
CT-C-1	14.1	2.6	120	18	15	3450	0.45	2260*1200*2000	1580
CT-C-2	28.3	4.9	240	36	30	6900	0.45*2	2260*2200*2000	1800
CT-C-2A	28.3	4.9	240	36	30	6900	0.45*2	4280*1200*2270	1880
CT-C-3	42.4	7.4	360	60	45	10350	0.45*3	2260*3200*2000	2100
CT-C-3A	42.4	7.4	360	60	45	10350	0.45*3	3240*2200*2000	2210
CT-C-4	56.5	10.3	480	80	60	13800	0.45*4	4280*2200*2270	2800
CT-1	14.1	2.6	120	20	15	3450	1.1	2480*1200*2375	1220
CT-2	28.3	4.9	240	40	30	5230	1.5	2480*2200*2438	1530
CT-3	42.4	7.4	360	60	45	9800	2.2	3430*2200*2620	2110
CT-4	56.5	10.3	480	80	60	11800	3	4460*2200*2620	2300

---
