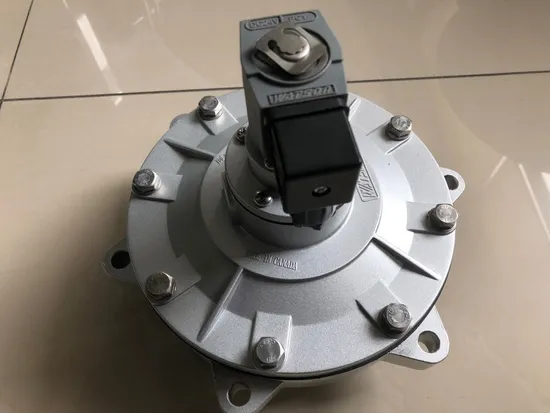

Watson Solenoid Valve for Industrial Bag Filter Agent by Xiecang Only

Product Description

The great operating-performance of solenoid dust filter diaphragm pulse valve reflects in: Sensitive and reliable signal, Low internal-resistance, Large gas-displacement, High airflow impact-force, Stable working, Long operating-life. The Technical characteristics of WATSON pulse valve:
1. Vacuum treatment for solenoid coil to eliminate harmful impurities, it makes the pilot work more sensative and reliable;
2. Orifice and unloading port match with the pulse valve, fast opening and closing, so it increases the blowing volume per unit time;
3. Membrane: Effective bonding and Sufficient tensile strength, Reliable sealing, Great anti-corrosion and anti-aging properties, we are the only company in China to use high-performance diaphragm so that it ensures long-term operation reliability. The company which provide us diaphragms also supply diaphragm to GOYEN and ASCO valve, it's the same supplier. We guarantee at least 1millon times of service life(5 years).
4. We are using high-quality pressure spring to guarantee at least 1millon times of service life.
Model Number: WPS-CA/EP76
We are the exclusive agent of WATSON pulse valve in Asia-Pacific area.

Technical parameters:

Connection port(G)	3/4'',1'',1-1/2'',2'',2-1/2'',3'', 4"
DN (mm)	25,40,50,62,76, 102
Material of valve body	aluminum
Working pressure	0.2---0.7Mpa (58Psi--87Psi)
Working medium	clean air
Voltage	DC24V/AC220V/AC110V/50Hz
Current	0.8A(0.05A)
Temperature	-10.C--80.C (14.F--176.F)
The relative humidity of air	no more than 85%
Diaphragm life:	1 million times(5 years)

---
