Ewp Reverse Osmosis System Water Treatment Equipment for Brackish Water

Product Description

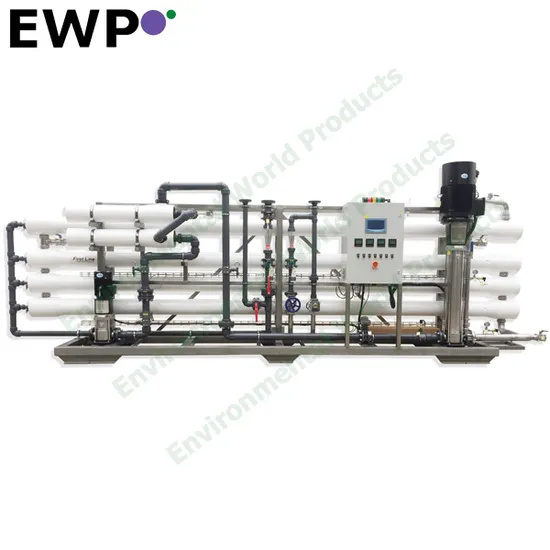

EWP Reverse Osmosis System Water Treatment Equipment for Brackish Water (BWRO Series)
The smart, clean utilitarian industrial design of the EWP LPRO/BWRO/PTROM/PTROL Series allows for convenient installation, user-friendly operation, and ease of maintenance. These skid-mounted, packaged systems are pre-plumbed and pre-wired complete on a steel frame with panel-mounted pressure and flow instrumentation allowing for straight forward system monitoring and control. EWP offers an assortment of both basic and premium designs of pure water systems that can be private labeled or customized.
Benifits

Fully equipped and customizable	Individually tested and preserved
Expandable and skid mounted	Low operation and maintenance costs
Components easily accessible	Easy maintenance and servicing
Pre-plumbed, wired and assembled	1-year limited warranty

Operating condition
Maximum Recovery: 65% - 75%
Nominal Rejection: 95-99%

Maximum Feed Temperature	°C (°F)	35 (95)	SDI		<5
Minimum Feed Temperature	°C (°F)	5 (41)	Free Chlorine		undetectable
Maximum Feed Pressure	bar (psi)	5 (72)	Iron	ppm	<0.1
Minimum Feed Pressure	bar (psi)	2 (29)	Manganese	ppm	<0.05
pH (Continuous)		4 ~ 9	Organic matter	ppm	<1

Specifications

Small size RO system with 4" membranes
LPRO-B/P16 series	Capacity		Power rate (50HZ)	RO membrane	width*depth*height
			feed water TDS<1500ppm	(1-6 pcs)	mm
LPRO-16-1500	1500gpd	0.25m3/h	1.5kw	4040	700*650*1650
LPRO-16-3000	3000gpd	0.50m3/h	1.5kw	4040	700*650*1650
LPRO-16-4500	4500gpd	0.75m3/h	1.5kw	4040	700*650*1650
LPRO-16-6000	6000gpd	1.00m3/h	1.5kw	4040	700*650*1650
LPRO-16-9000	9000gpd	1.50m3/h	2.2kw	4040	700*650*1650
LPRO-B/P412 series	Capacity		Power rate (50HZ)	RO membrane	width*depth*height
			feed water TDS<1500ppm	(1-6 pcs)	mm
LPRO-412-6000	6000gpd	1.00m3/h	1.5kw	4040	700*1650*1350
LPRO-412-9000	9000gpd	1.50m3/h	2.2kw	4040	700*1650*1350
LPRO-412-12000	12000gpd	2.00m3/h	3.0kw	4040	850*2350*1350
LPRO-412-15000	15000gpd	2.50m3/h	3.0kw	4040	850*2350*1350
LPRO-412-18000	18000gpd	3.00m3/h	3.0kw	4040	850*2350*1350
Small size RO system with 4" membranes
BWRO-B14 series	Capacity		Power rate (50HZ)	RO membrane	width*depth*height
			feed water TDS<3000ppm	(1-6 pcs)	mm
BWRO-14-1500	1500gpd	0.25m3/h	2.2kw	4040	700*650*1650
BWRO-14-3000	3000gpd	0.50m3/h	2.2kw	4040	700*650*1650
BWRO-14-4500	4500gpd	0.75m3/h	2.2kw	4040	700*650*1650
BWRO-14-6000	6000gpd	1.00m3/h	2.2kw	4040	700*800*1650
BWRO-B412 series	Capacity		Power rate (50HZ)	RO membrane	width*depth*height
			feed water TDS<3000ppm	(1-6 pcs)	mm
BWRO-412-6000	6000gpd	1.00m3/h	3.0kw	4040	700*1650*1350
BWRO-412-9000	9000gpd	1.50m3/h	3.0kw	4040	700*1650*1350
BWRO-412-12000	12000gpd	2.00m3/h	4.0kw	4040	850*2350*1350
BWRO-412-15000	15000gpd	2.50m3/h	4.0kw	4040	850*2350*1350
BWRO-412-18000	18000gpd	3.00m3/h	4.0kw	4040	850*2350*1350

Basic RO Process diagram
Raw water----Raw water feed pump---Sand filter---Activated carbon filter---Softener (optional)---Cartridge PP filter----High pressure pump---RO system---Pure water tank----UV sterilizer----Fine filter(optional)
CIP system and Antiscalant dosing system are optional.

---
