Paper Cup Lid Making Machine Coffee Cups Lid Forming Thermoforming Machine Plastic Cup Cover Molding Machine Plastic Lid Machine

Product Description

Product Description

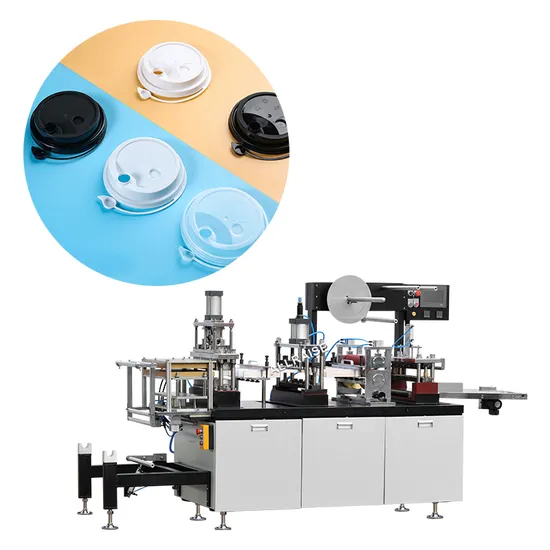

Automatic plastic cup lid thermoforming machine is based on the principle of aluminum-plastic blister packaging machine and the advantages of positive pressure forming machine, optimized equipment functions to achieve automatic unwinding, sheet contact heating (power 8KW), positive pressure forming or pressing forming, hardware punching or laser cutting of metal molds, punching and stacking of metal molds, unloading, recycling of scraps or recycling of shearing sections, etc. effectively solve the problem of Excessive labor input, complex production processes, poor stability, high energy consumption, and low product safety in production of PS / PVC / PET and other plastic products.
This plastic cup lid thermoforming machine is widely used in the production of plastic PVC/PS/PET lid, such as paper cup lid,paper bowl lid and plastic lid etc.

Product Parameters

Model	OR-420	OR-420G	OR-450W
Cutting Frequency	8--30(times/min)	8--32(times/min)	15--45(times/min)
Power	380v/220v/50HZ	380v/220v/50HZ	380v/220v/50HZ
Stroke adjustable range	60--180mm	60--320mm	0-260 mm
Max. Forming Depth	50mm	50mm	45mm
Max. Forming Area	170×410mm	310×420mm	430×280mm
Motor Power	3kw	3kw	3kw
Weight	850kg	1250kg	1700 kg
Consumption	0.5-0.7 mpa, 0.4m³/min	0.5-0.7 mpa, 0.12m³/min	0.4-0.7 mpa, 0.2m³/min
Overall Dimension	2700*840*1700mm	3800*920*1750mm	3440*1833*930 mm

Detailed Photos
Packaging & Shipping

Packaging	By container or standard export packing per machine
Delivery time	15-30 days after payment received
