Customized water mold temperature controller oil mold temperature controller

Product Description

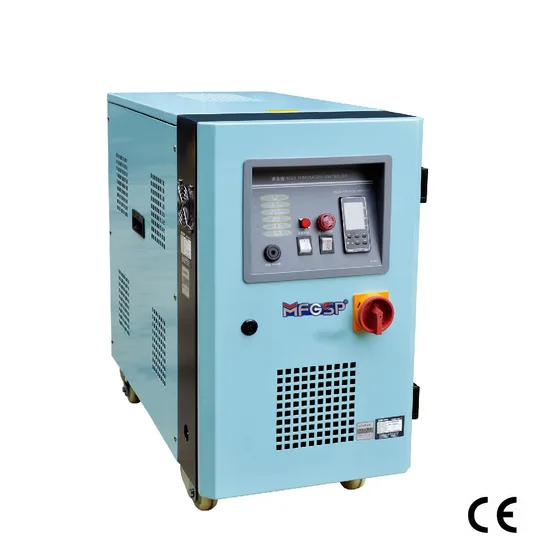

Water Type Mold Temperature Controller

Performance characteristic:
1.Controlled by PID micro computer,accurate temperature control.
2.Pump overload protection to ensure service life effectively.
3.Alarm device for low liquid level to guarantee system running safety.
4.Switch of main power source conforms to CE safety standard.
5.Alarm device for Phase reverse to guarantee system running safety.
6.The device is equipped with multi-fault indicator to facilitate the customer knowing the reason and solving in time.
7.The heating barrel is made from the stainless steel and cleaned easily.

Water Type Mold Temperature Controller Specifications:
Model	Max. Temp. (ºC)	Heat (kw)	Pump (kw)	Flux (L/min)	Heating Medium	Cooling Mode	Mold Tie (Inch)	Extennal Dimensions LxWxH (mm)	Weight (kg)
STC-6W	95	6	0.37	45	Water	Direct Cooling	3/8"2x2	780x260x650	40
STC-9W	95	9	0.75	56			3/8"4x2	780x260x650	45
STC-12W	95	12	1.5	80			3/8"6x2	780x260x650	50
STC-18W	95	9x2	1.5	200			3/8"6x2	900x400x810	55
STC-24W	95	12x2	2.2	315			3/8"6x2	900x400x810	60
STCH-6W	160	6	0.37	45			3/8"4x2	900x400x810	50
STCH-9W	160	9	0.75	56			3/8"4x2	900x400x810	52
STCH-6WZ	160	6	0.55	45		Indirect Cooling	3/8"4x2	910x340x800	50
STCH-9WZ	160	9	0.75	56			3/8"4x2	910x340x800	50
STCH-12WZ	160	12	1.1	80			3/8"4x2	910x340x800	55
STC-6W-2D	95	6x2	0.37x2	45x2		Direct Cooling	3/8"2x4	900x400x810	60
STC-9W-2D	95	9x2	0.75x2	56x2			3/8"4x4	900x400x810	65
STM-607PW	180	6	0.6	25.5		Indirect Cooling	3/4" / 3/4"	320x910x690	80
STM-607PW-D		6x2	0.6x2	25.5			3/4" / 3/4"	620x990x750	185
STM-1220PW		12	1.05	50			3/4" / 3/4"	320x990x690	95
STM-1220PW-D		12x2	1.05x2	50			3/4" / 3/4"	620x990x750	190
STM-2440PW		24	2.9	100			1" / 1"	450x1050x950	140
