Product Description
Product Description
1.Parameters:
Main Technical variables
|
Model
| JB-720A
| JB-800A
| JB-1020A
|
|
Max. paper size
Min. paper size
Max. printing size
| 720*520mm
350*270mm
720*500mm
| 800*600mm
350*270mm
800*590mm
| 1020*720mm
560*350mm
1020*710mm
|
|
Paper thickness
| 108-400g/m2
| 108-400g/m2
¡
| 120-400g/m2
¡Ü10mm
|
|
Printing speed
Power
Total weight
Overall size
| 1000-3600pcs/h
3P 380V 50Hz 7.8KW
3500kg
4200*2400*1600mm
| 1000-3300pcs/h
3P 380V 50Hz 7.8KW
3800kg
4300*2550*1600mm
| 1000-3000pcs/h
3P 380V 50Hz 10.5KW
5000kg
4800*2800*1600mm
| |
2.Description:

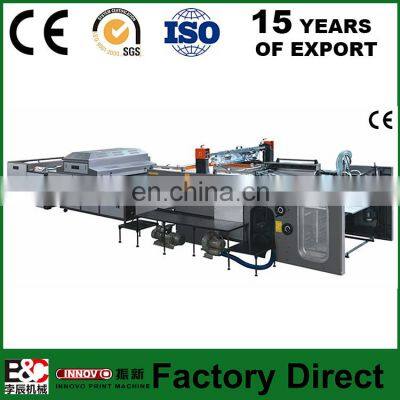

JB-A Series full automatic stop cylinder screen press which adopts the classical stop cylinder technology with the advantages such as: paper located exactly and steadily, high precision, high speed, low noise, high degree auto motivation and so on, it is suitable for printing on ceramic and glass applique, electron industry(film switch ,flexible circuitry, meter panel, mobile telephone), advertisement, packing and printing,
brand, textile transfer ,special techniques etc.
Characteristics
1.Classical stop cylinder mechanism, sylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder, which is up to extreme high precision:
at the same time, gripper of cylinder and pull side-lay both have the magic eyes for supervising if the printing stock is in correct place ,which can reduce the waster effectively.
2.The bottom of convey table with vacuum adsorption, assembled with the pull and press mechanism, ensure printing stock delivered smoothly.
3.Two cams separately control the movement of squeegee and ink -return blade: squeegee with the pneumatical pressure kept device, the printing graphics is more clearly and the ink layer is more well-proportioned.
4.The screen frame rack can be pulled out, which is easy for adjusting the register or feeding, as well as cleaning the cylinder and screen frame; at the same time, it is assembled with device to hold the ink dropped to avoid the ink drops on the cylinder.
5.Main transmission and main parts lubricate automatically, prolong the using precision and machine life in effect.
6.The whole machine controlled by PLC, can choose touch screen for operating, which is very easy and high degree automatism.
7.It can be used with JB Series screen drying machine, UV dryer, UV & IR dryer and automatic stacker to form the full automatic screen printing line.
3.Company strength:
1.15 years factory experience
2.10 years export experience
3.Over one hundred professional factory workers
4.100% quality guarantee,supply all kinds of certificates
5.Good after-sales serive,we send engineers to repair machine overseas.
6.Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
7.Following is our factory pictures:
4.Certificate:
5.Trade show:
6.Packaging & Loading:
Welcome to visit our factory!
>>
