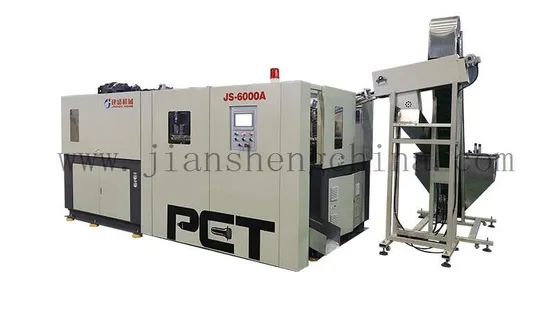

6 Cavities Linear Type Fully Automatic Blow Molding Machine

Product Description

Full Servo High Speed Automatic Pet Bottle Blow Molding Machine
1.Pet Plastic Type And Yes Automatic Blow Molding Machine JS-6000A With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)
2.Nontoxic conveyor belt to carry preforms
3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4. Easy to maintain
5. Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.

Mold clamping force (KN)	500
Mold traveling distance (mm)	135
Pulling rising traveling distance (mm)	350
Mold hole number (cavity)	6
Max. Bottle capacity (L)	2
Max. Tooth part size (mm)	40
Max. Bottle diameter (mm)	105
Max. Bottle body height (mm)	350
Theoretic production capacity (bph)	7000-9000PCS/HR
Total power consumption (kW)	65
Thermal rating (kW)	60
Operating pressure (kg/cm2)	8
Low pressure gas consumption (L/min)	2000
Bottle blowing pressure (kg/cm2)	30
High-pressured gas consumption (L/min)	5500

Internal details of the Machine

---
