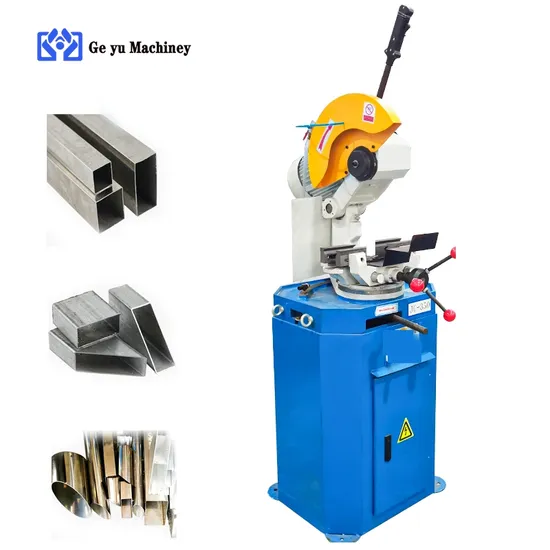

Stainless Steel Hydraulic Pipe Cutting Machine Mandrel Pneumatic Water Cooled Tube Cuttermanual Semi-Automatic Pneumatic Circular Saw CNC Automatic Circular Saw

Product Description

Product Overview

cold saw manual pipe cutting machine with qality steel saw/blade
max. pipes / profiles diameter cutting : 150mm many material profiles application for cutting: stainless steel, iron, aluminum, alloy, copper, solid bar.
different angle cutting: 30° 45° 90°.
good quality blades
different profiles can cutting: round pipe, square tube, rectangular, shaped- formed. L-angle...
Detailed Photos



Product Parameters

Major project	SAP275	SAP315	SAH425	SA455Q
Blade drive the motor	2/4pole2.0/2.4KW380V/50HZ	2.4/3.0KW/380V/50HZ	3.3/4.0KW/380V/50HZ	3.3/4.0KW/380V/50HZ
Saw blade rotation speed	60/120RPM	60/120RPM	60/120RPM	3200RPM
Angle of nose turn	90/45Degree	90/45Degree	90/45Degree	90/45Degree
Cooling pump motor	40W	40W	40W	40W
Saw blade size	Max outer diameter:275 Inner hole:32 Pin hole 2-φ11*63	Outer diameter:HSSφ250-310mm(10"-12") Apeture:32mm Pin hole:2*φ11*PCD63mm	Maximum sawing capacity:125mm	Circular saw blade inlaid with tungsten steel knifeφ355-455*φ25.4mm Maximum sawing width 300mm Maximum cutting height 140mm
Machine size(mm)	610*650*1250	650*1100*1350	1600*900*2000	1030*860*1360
Weight	220KG	280KG	350KG	335/385KG

Our customers visiting



FAQ

Q1: Are you trading company or manufacturer? YES, we are a manufacturerwe are focusing on metal pipe/tube processing machines production Q2: The nearest port Qingdao or Shanghai port. Q3:How to choose the machine model? pls tell us the follow informations ---pipe/tube material ---pipe/tube size, wall thick Q4: about service before sales service We will help you confirm the suitable machine model according to your pipe information. machine data and vedio for you to check. after sales service manual book and operation vedio , installation, commission for you to operate the machine welcome to our factory and learn more knowledge about the machine. if you affect the air tickets. any problems on the machine. we will offer reply by email. vedio. mobile. online.

---
