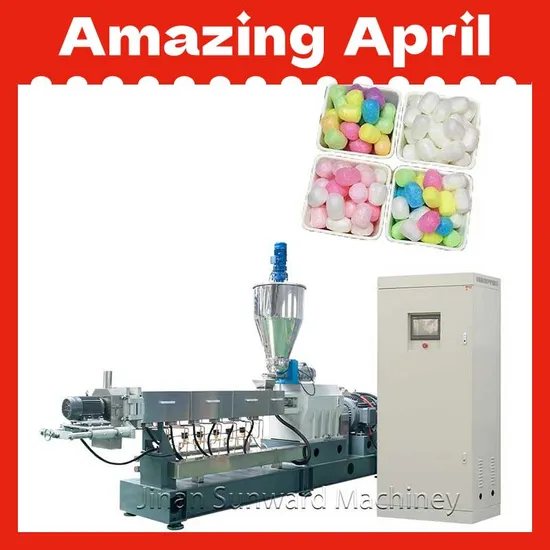

Eco-Friendly Foam Packing Peanuts Production Line Biodegradable Packing Filler Machine

Product Description

Brief Introduction:
Biodegradable filling packing material production line is a kind of new application of extrusion technology.
The line uses vegetable starch as the main raw material. By twin screw extruder, it is processed into a kind of starch-based foam material without any additives or vesicant which can be fully biodegradable.
Biodegradable filling packing material can be widely used, such as packaging and filling material which can fill in the item's packaging space quickly and evenly. It can be used on electrical products, precision instruments, etc of its functions of buffer and shock absorption. What's more, it can be used as educational sticky toys" and "DIY corn kernels" etc. After lightly wet, it can be bonded with the other materials, and create infinite styles.
Biodegradable filling packing material is applied widely since it is green, safe for children and the environment biodegradable, non-toxic, lightweight,anti-static, etc.
Flow Chart of Packaging Foam Peanuts Produce Machines:
Mixer Machine---Screw Conveyor---Twin-screw Extruder---Air Conveyor---Drying Machine
Raw materials:
Maize / Corn starch, Cassava /Tapioca starch, Potato starch
Products of packaging foam peanuts produce machines:
corn starch loose filler, biodegradable packing peanuts, resilient &reusable stuffing materials, and water-soluble & compostable cushioning materials.
Sample Products:
The output of the Plant can be 100kg/h-150kg/h, 200kg/h-260kg/h, 300kg/h-500kg/h, and so on.
Features of Our machines:
1)The screws are made of alloy steel and special craft, the screw life is longer, uses a building block system structure, and may combine willfully.
2)The forced lubrication system, by guaranteed equipment transmission longer life.
3). Visible auto-temperature controlling system, make the temperature-controlling to be more direct -viewing, parameter to be more precise.
4). Voltage: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
5). Self-cleaning. when stopping, can be cleaned without disassembling.
6). This equipment has a wide material, multi-shape products, and flexible collocations. We can produce different products according to the different models and collocations.
7). Frequency speed controlling with high automation and stable performance.
Technical Parameters:

Model	TSE-65	TSE-70	TSE-85	TSE-95
Installed Capacity(kw)	73	90	120	180
Real Power(kw/h)	50	60	90	150
Output(kg/h)	100-150	200-300	300-500	600-800

Extruder Machine Exploded Drawing Production Process:
From production to delivery, at least 5 quality inspections are carried out, namely: purchase inspection by the purchasing department, pick-up inspection by the production department, an inspection of each module of the machine, inspection of the whole machine (including appearance and test machine) and inspection before leaving the factory.
Project Cases:
Now there are 100 countries people using our equipment including our agents' clients. Not only can our after-sales engineers provide on-site service, but our agents in India, Nigeria, and Peru can also help our customers quickly solve their problems. You can receive professional service.
Company Information:
Jinan Sunward Machinery Co., Ltd is founded in 2009. It is a food machinery manufacturer which specializes in producing the extrusion machines such as pet food machines, textured soy protein machines, corn flakes machines, nutrition rice production equipment, and so on...Our company has more than12 years of manufacturing experience. Until now, there are not only direct customers, but also some long-term cooperation agents all over the world. OEM and ODM orders are also welcomed. Whether selecting a current product from our catalog or seeking engineering assistance for your application, sincerely welcome to consult with our customer service center about your sourcing requirements. Providing high-quality products is our goal, and winning with our customers is our philosophy.
So far, there are nearly 200 employees in 7 departments. Including the product development department, production department, quality inspection department, domestic sales department, international sales department, technical department, and logistics department.
Normally, we participate in serval exhibitions every year, such as exhibitions in Peru, India, Russia, Uzbekistan, South Africa, and Nigeria.
Our company and our products have obtained CE, SGS, ISO9001, and other certifications, and hold dozens of invention patents and honorary qualifications such as high-tech enterprises
Packaging & Shipping
A. Testing Machine before package.
B. We will pack all necessary machines into wooden cases. For the drying machine, and heavy extruders, we will fix them in the container with very strong iron wire.
C. If by LCL for small quantity machines, we will let send to QINGDAO port for loading.
D. If need containers, our trucks will take the containers from the port to our factory for professional and safely loading, and then return to the port for shipment.
Service:
We provide local services to all our markets by offering our advice and expertise: spare parts and upgrading, equipment and ancillary modules, automation systems, training, process support, and remote and on-site maintenance. Technical support is provided by a team of specialists.
-- Before sale service
1. Provide free consultation on the equipment.
2. Provide the standard device and the flow chart.
3. According to the client's special requirement, offering a reasonable plan and free design helps to select the equipment.
--Services during the sales:
1. Help the client design the factory and offer professional advice, and free engineering drawing for the factory layout
2. Welcome to visit our factory or the domestic clients' factory.
3. Inspect the machine before leaving the factory.
--After-sale services:
1. Overseas installation and debugging of the equipment.
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.

FAQ:
1. Is configuration(allocation) a fixed standard?
Answer: No, it is flexible, we will equip machines based on your requirement;
2. Can I come to check on your company?
Answer: Welcome to visit us! We will show our machines in our factory;
3. Do you have a shipping agent for delivery?
Answer: Yes, we have a reliable shipping agent. They can offer a good freight and take care of the process very well;
4. Can you test our formulation with your Machines?
Answer: As long as you trust us, we can test your basic formula, then you can see the outcome and place an order without any hesitation;
5. Why is the price on the web in a range?
Answer: We have many models, and the production lines' configurations are various. So we will equip machines based on customers' specific requirements. So, the price range is for reference.
