Automatic PLD 1200 1600 2400 Precast Concrete Aggregate Weighing Conveying Batcher Bin

Product Description

Automatic PLD 1200 1600 2400 precast concrete aggregate weighing conveying batcher bin Product Description

DOM aggregate batching storage hopper silos Introduction

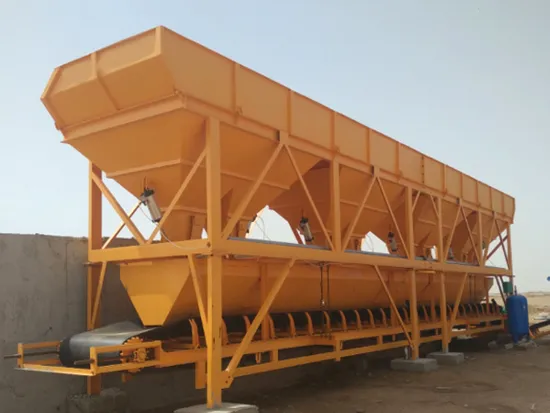

The concrete batching machine is a sand and gravel batching device using a loader or a belt conveyor. It can be used with cement silo sand other equipment. It can be used with more than three kinds of materials. It can be used with various types of mixers and other measuring devices to form a fully automatic and semi-automatic mixing station, this machine can effectively ensure the accuracy of the mixing ratio of cement, sand, stones, etc, and the use of electronic weighing system, to further improve the accuracy of weighing. The top panel can be lowered or removed as needed, which can greatly reduce the labor intensity of the loading part and increase the convenience of construction.
Advantages:
1,Suitable for variety building material storage
2,Accurate weighing and can adjust material ratio
3,Easy to operate,no professional required
4,Can save 4-6 feeding workers,help you to save must cost
Capacity and hopper quantity can be customized !
Product Parameters

Model	PLD1600	PLD2400	PLD3200	PLD4800	PLD6400
Capacity of Weighing Hopper(M3)	1*2.40	1*3.60	4*2.0	4*2.50	4*3.50
Capacity of Storage Hopper(M3)	4*13	4*16	4*25	4*30	4*35
Accuracy of Batching	+/-2%	+/-2%	+/-2%	+/-2%	+/-2%
Max Weighing(kg)	2500	3000	3000	4500	5000
Material Species of Batching	4	4	4	4	4
Belt conveyor Speed(m/s)	1.6	1.6	2	2	2
Power(kw)	11	15	11	11

Applications
