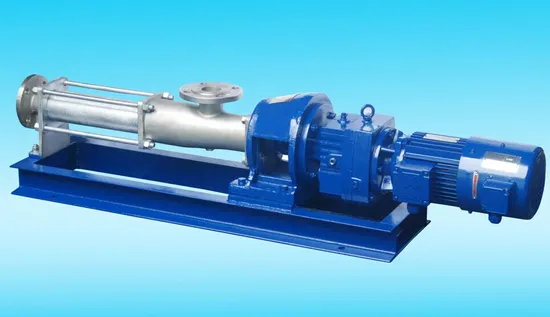

G Syrup or Honey Transfer Mono Screw Pump

Product Description

Product Introduction:
type screw pump for a single screw-type transport pumps, because of its excellent performance in recent years in the domestic application of rapid expansion. Its most important feature of the media flexibility and a smooth flow, pressure, pulse of small, self-absorption capacity, which is by any other species can not replace the pump can be realized liquid, gas, solid multiphase lose, applied to Chemical, pharmaceutical, electroplating, printing and dyeing, paper, electricity and other transportation industries lubrication or non-lubricating medium, corrosive media, containing a small amount of tiny solid particles of medium and low viscosity of the medium to high viscosity.

Range of Application:
To handle industrial and domestic wasterwater, and muddy water containing solid particles and short fibre;To handle mediums such as oil remains in oil tankers,oil water,oil residue and etc.;
To handle thick paste ,emulsified paste,unguent cosmetics and etc.;
To handle adhesive starch ,cooking oil ,honey, pulpy sugar, mashed fruit,cream and other leftovers;
To handle paste in the industries of brewage,construction ,mining ,printing ,papermaking and etc.
Type Designation:

Model	Speed r/min	Flow M3/h	Pressure Mpa	Motor KW	Head m	Inlet mm	Outlet mm	Allowable particulate size(mm)	Allowablefibre length(mm)
G20‐1	960	0.8	0.6	0.75	60	25	25	1.5	25
G25‐1	960	2	0.6	1.5	60	32	25	2	30
G25‐2	960	2	1.2	2.2	120	32	25	2	30
G30‐1	960	5	0.6	2.2	60	50	40	2.5	35
G30‐2	960	5	1.2	3	120	50	40	2.5	35
G35‐1	960	8	0.6	3	60	65	50	3	40
G35‐2	960	8	1.2	4	120	65	50	3	40
G40‐1	960	12	0.6	4	60	80	65	3.8	45
G40‐2	960	12	1.2	5.5	120	80	65	3.8	45
G50‐1	960	20	0.6	5.5	60	100	80	5	50
G50‐2	960	20	1.2	7.5	120	100	80	5	50
G60‐1	960	30	0.6	11	60	125	100	6	60
G60‐2	960	30	1.2	15	120	125	100	6	60
G70‐1	720	45	0.6	11	60	150	125	8	70
G70‐2	720	45	1.2	18.5	120	150	125	8	70
G85‐1	720	65	0.6	15	60	150	150	10	80
G105‐1	500	100	0.6	22	60	200	200	15	110
G135‐1	400	150	0.6	37	60	250	250	20	150

Technology Parameters:

Flow:0-150m3/h;
Head:60-120m;
Power:0.75-37kw;
Rotary speed:500-960r/min;
Calibre:20-135mm;
Temperature:-15-200ºC.

---
