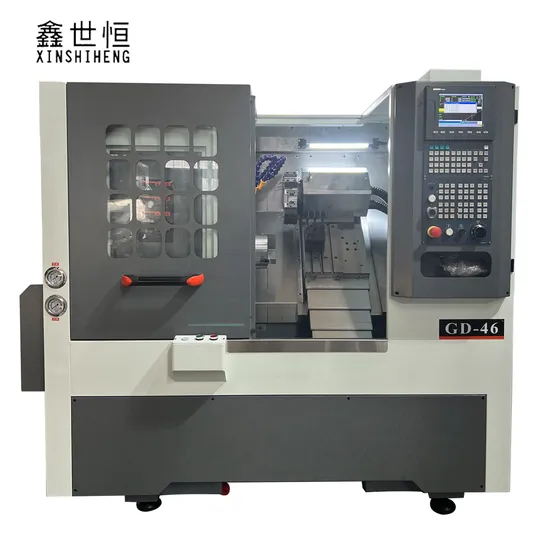

Gd46 CNC Machine Tools High Precision Linear Guide Rail CNC Turning Milling and Drilling Lathe

Product Description

Product Description
Detailed Photos
Product Parameters
Standard Configuration:
Machine model: GD-46
Specifications of bed: integral bed
Control system: GSK 980TB3i system
Clamping configuration: Hydraulic Clamping
Tool configuration: Row tool post
Feed system:
1. X/Z screw bearing: 720604 flange (Luoyang bearing)
2. X/Z axis ball screw: 3210 (Taiwan Hiwin)
3. X/Z guide rail: Taiwan Hiwin pin roller 30*800
Spindle bearing: 7215DBB/7213DBB
Other configuration: electric oil pump, water pump
Machine bed: integral bed 250 casting

Parameter	SPECIFICATIONS	Units	GD-46
Machining Capacity	Maximum swing over bed	mm	Φ400
	Maximum turning diameter over turret	mm	Φ160
	Maximum machining length	mm	200
	Maximum machining bar diameter	mm	46
	Diameter of spindle bore	mm	Φ56
	Maximum stroke of X/Z	mm	800/400
Power System	Spindle maximum spindle speed	r/min	3000
	Spindle Motor	KW	5.5
	Spindle Transducer	KW	5.5
	X/Z drive motor	N/M	6/6(GSK original)
Tool Post	Height of rectangular tool shank section	mm	20
Precision	Repeat Positioning accuracy	mm	0.01
	Machining accuracy	mm	<0.01
	Spindle beat	mm	<0.01
Other	Hydraulic pump motor	kw	0.75
	Cutting fluid pump motor	kw	0.9
	Power supply power	KVA	7.5
	Machine weight	kg	1800
	Machine Size	mm	2000x1400x1700

Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,
Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.

---
