Product Description
Product Description

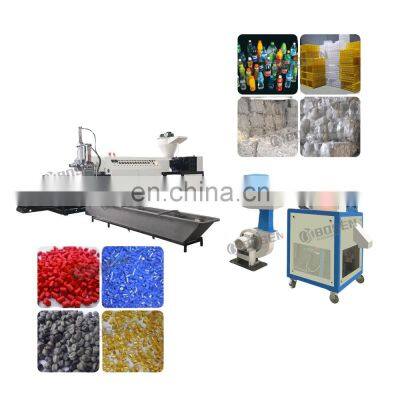

Product DescriptionThis machine is used to recycle waste PET/ LDPE/HDPE/LLDPE/PP/ABS/PC/PS/NYLON PLASTIC FILM film and bags and other soft plastic sheets or films.PRODUCE LINE STEPScrush & washing---------Material loading by hand or belt----- force feeder——one screw /Two screw extruder——die head screen changer ——Water cooling----Air dryer (option)——Pelletizer——Vibrating sieve (option)----Silo Model BSZM 90 BSZM 110 BSZM120 BSZM130 Diameter of screw 90 110 120 130 Screw L/D 18:1, 20:1 20:1 20:1 Main motor power 37KW, 11KW 45KW, 15KW 55KW, 18.5KW 75KW, 18.5KW Output 100-200KG/H 150-300KH/G 200-400KG/H 250-500KG/H Weight 3500KG 4000KG 4500KG 5000KGRecycle material sampleMachine in our factory picturesGood quality in detailsBelt and crush is for your option. Cutter machine is included.This is new hopper with film cutting and feeding automatic together.Main Features1. Bszms series Dry-Waste Plastics Recycling Machine is used for recycling of the used and waste plastic materials.2. It is equipped with automatic constant temperature, hydraulic net changer.3. It also can pelletize the crushing material after fitting with a loader. Optional4. The cutting machine adopts speed regulating motor. which can cut the material according to the feeding speed of the extruder, with such features as high output, low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative pelletizer.5. Two times plasticizing system6. Feeding unit adopts force feeder. optional7. The helical gear reducer with hard teeth is applied to the extruder and the screw8. Cylinder and screw are made of 38CrMoA1A with nitrogen treatment.9. Which is durable consists of main extruder and sub-extruder, water tank, drying fan and cutting part with alloy rotary cutter.10. Besides it is optional to be collocated with drying fan according to the customer’s need.Detailed ImagesEXTRUDER DIE HEADHigh quality die head for best granulating.High outputAutomatic screen changer MOTOR QUALITY Motor is Siemens or China brand CHNT switches Inverter is Delta or Eura China brand MACHINE QUALITYGood design with easy operation and maintain High output and long machine lifeFORCE FEEDINGHigh speed force feeding unitWith new design Option with automatic transfer belt Option with crush machineCertificationsPacking & Delivery Packaging Size as ordered Weight see specification Packaging Details The normal package is film packaged in container. If no container i,we will use pe film and wooden case for packing or pack it according to customers special request.Our ServicePre-Sales Service* Inquiry and consulting support. * Sample testing support. * View our Factory.After-Sales Service* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.Related ProductsProducts Name with link91.8% Response RateProducts Name with link91.8% Response RateProducts Name with link91.8% Response RateFAQ
>>
