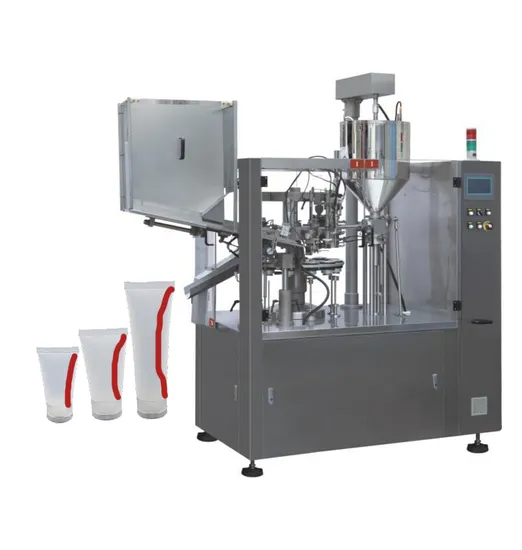

Tube Filling&Sealing Machine Cream Filling Machine

Product Description

Machine Introduction
This machine is a high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement. It adopts with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries.
Features
1) Operation screen with LCD display PLC and buttons, easy operation and more humanization By stepless speed adjust, parameter set, output count, pressure index and failure display.
2) Automatically executing tube supply, photoelectron register, inert gas filling (optional), material filling and sealing, batch number printing, final products output.
3) High precision photoelectron register, reduced the chromatic aberration scope.
4) Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
5) Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; warning if tube error position, pressure too low, automatic stop machine if open the protective door.
Technical Parameters

1	Product capacity	50-75pcs/min
2	Filling volume	5-350ml
3	Filling accuracy	≤±0.5%
4	Tube length	50-240
5	Tube diameter	Φ10- Φ50
6	Tube material	Metal tube, ALU tube, Plastic tube, Compound tube
7	Working pressure	0.5-0.6MPa
8	Compressed Air Consumption	1.1m³/min
9	Motor Power	2.2KW
10	Overall dimension	2500*1200*2400mm
11	Machine weight	1200Kg

Packaging & Shipping
Company Profile
1.what's the delivery time?
it's about 30days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 21 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--21 years experience:We have been in making machinery for 21 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.

---
