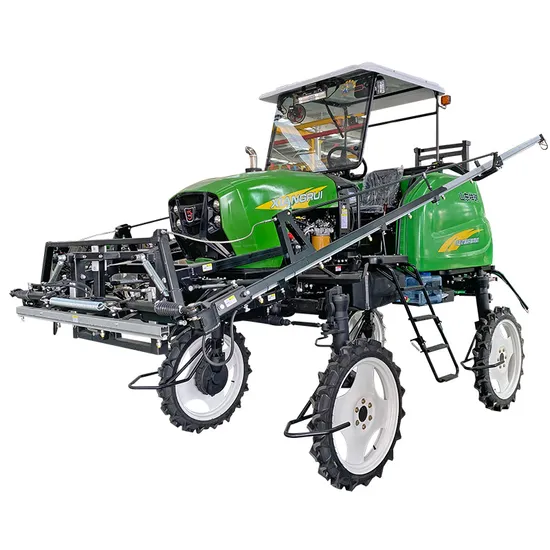

OEM Cheap Self-Propelled Boom Sprayer with CE ISO9001 for Paddy Field Dry Field

Product Description

Product description:
Xiangrui is a professional company manufacturing self-propelled boom sprayer of 700 liters,1000 liters,1300 liters,2000 liters and 4000 liters, which are widely used for spraying rice, wheat, corn, soybean,vegetables and other crops, greatly improving labor efficiency and pesticide utilization.
There are 11 professional technicians, who have many years of experience in plant protection machines, Our company has passed the ISO9001 quality management system certification, CE, national compulsory product 3C certification.

Item	Content	Unit	Model
			3WPZ-700A	3WPZ-700L	3WPZ-700K
Overall Size	Dimensions	mm	5950×2010×2980	4850×2450×3070	4700×2050×2900
	Boom Length	mm	14350	17350	11200
	Boom Lifting Height	mm	500-1800	500-1800	500-1800
	Ground Clearance	m	1.1	1.05	1.02
	Wheel Base	mm	2050	2050	2050
	Wheel Track	m	1.5 / 1.8	1.8	1.5
	Cab type	/	canopy	canopy	canopy
Spraying System	Working Pressure	Mpa	0.2-0.5	0.2-0.5	0.2-0.5
	Tank Capacity	L	700 (LLDPE)	700 (LLDPE)	700 (LLDPE)
	Mixing Mode of Pesticide	/	Jet Flow+Back Flow	Jet Flow+Back Flow	Jet Flow+Back Flow
	Spraying Width	m	15	18	12
	Working efficiency	m2/h	45000-56000	50000-60000	40000-50000
	Fuel consumption	liter/h	6	6	6
	Nozzle Type	/	Cone Spray/32 pcs	Cone Spray/38 pcs	Cone Spray/24 pcs
	Material of Boom	/	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy
	Position of Boom	/	Front	Front	Front
	Structure Type of Liquid Pump	/	Three Cylinder Plunger Pump	Three Cylinder Plunger Pump	Three Cylinder Plunger Pump
	Driving Mode of Liquid Pump	/	Hydraulic	Hydraulic	Hydraulic
Engine System	Rated Power	kw/rpm	36.8/2400	36.8/2400	36.8/2400
	Battery Capacity	/	24V 60AH	24V 60AH	24V 60AH
Driving System (3+2)x2	Driving Type	/	4WD	4WD	4WD
	Steering Type	/	4WS	4WS	4WS
	Tire Type	/	Pneumatic	Pneumatic	Pneumatic
	Tire Outer Diameter	mm	1200	1400	940
	Tire Width	mm	130	130	120
	Drive Axle Style	/	Front and Rear Differential Lock	Front and Rear Differential Lock	Front and Rear Differential Lock
	Turning radius	mm	3000	3500	2900
	Driving speed	km/h	0-24	0-24	0-24
Fertilizer spreader	Spreading width	m	15	18	15
	Fertilizer tank	liter	350	350	350
Optional	1000 liter pesticide tank, Cab, Double disc type fertilizer spreader
Remarks	The Above Parameters are subject to change without notice.

Workshop with 6S management:
Our Certificates: ISO9001, CE,CCC,etc.
Exhibition and shipping:
Our service:
FAQ: Q1: Manufacturer or Trading Company?
We are a manufacturer since 2014.
Q2: How about the quality? Our self-propelled boom sprayer sales is no. 1 in China, the quality is very good. Q3: What's the delivery time? Normally 15 days after receiving deposit. Q4: How about the gurantee? Our axle guarantee is 2 years!

---
