Slitting Line for Aluminium, Copper, Stainless Steel, Coated and Special Materials

Product Description

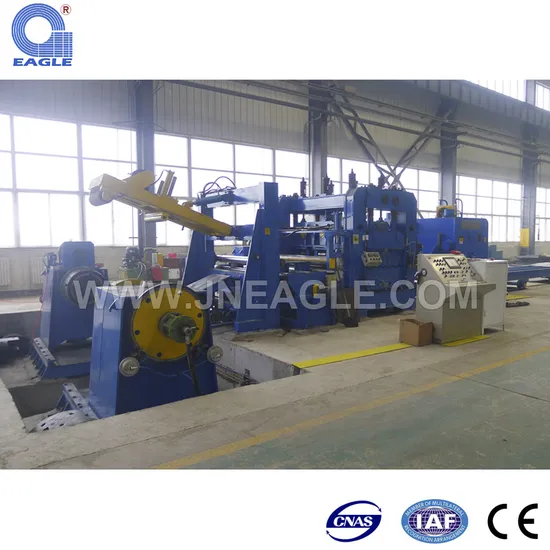

Cut to length line ECL series
A cut to length line is generally used for jobs like uncoiling, straightening, measuring, cross-cutting to length and stacking of various materials such as cold or hot rolling carbon steel, tinplate, stainless steel, and other kinds of metal with coated surfaces.
Features of Cut to Length Line:
1. Our cut to length line uses a roll feeding, AC servo drive.
2. It has a fully digital length control system that ensures fast positioning with little error.
3. It has a hard chrome plated surface and is durable and abrasion resistant.
4. It is used together with a hydraulic shear or an air-clutch shear to carry out fast shearing and convenient clearance adjustment.
5. Our cut to length line is suitable for hot rolling carbon steel, tinplate, stainless steel, and other kinds of metals with coated surfaces.
Advantage:
1. High degree of automation, easy & reliable operation
2. High length precision, high sheet flatness
3. Good order stacking

ECL series cut to length line is composed of the followings:

1	Entry coil car	1 set
2	Uncoiler	1 set
3	Outboard support	1 set
4	Feeding table	1 set
5	Leveler	1 set
6	Loop table	1 set
7	Side guide	2 pairs
8	Servo feed roll	1 PC
9	Shear	1 PC
10	Conveyor belt	1 set
11	Stacker	1 set
12	Blower	1 set
13	Hydraulics	1 set
14	Electrics	1 set

Uncoiling Unit
This uncoiling unit of our cut to length line allows several coil stocks to be pre-placed on the loading station. It is available with single head or double heads to suit different requirements.
Leveler
The leveler of our cut to length line may have various designs, from 2H, 4H or 6H. It can be flexibly controlled and can carry out good leveling of the plate materials. Its leveling roll is made of roll steel with a chrome-plated surface. It is of good abrasion resistance and long service life.

Feeder and Shear
Our cut to length line employs a pair or two pairs of feed rolls, driven by an AC servo motor, to feed the strip to the set length precisely. They ensure fast positioning with little error. These feed rolls are compatible with a hydraulic shear or an air-clutch shear to carry out fast shearing and convenient clearance adjustment. It can be equipped with a roll type or a belt type conveyor.
Stacking Unit
Our cut to length line can be equipped with a pneumatic or electromagnetic stacking unit. It is equipped with a blower to protect the surface from scraping. Both longitudinal and transverse stacking are available.

Besides,there are also other types of ECL series cut to length lines,all the cut to length line are sa follows:

Model	Coil thickness(mm)	Coil width(mm)	cut tolerance(mm)	Line speed(max)(m/min)	Shear number(max)(spm)	Coil weight(ton)
ECL-2X1300	0.2-2	300-1300	±0.3	60	50	7/15
ECL-2X1600	0.2-2	400-1600	±0.3	60	50	7/15
ECL-2X1850	0.2-2	900-1850	±0.3	50	40	20
ECL-3X1600	0.5-3	400-1600	±0.3	50	40	15
ECL-3X1850	0.5-3	900-1850	±0.3	50	40	20
ECL-3X2000	0.5-3	900-2000	±0.3	45	40	30
ECL-6X1600	1-6	600-1600	±1	25	20	20
ECL-6X2000	1-6	900-2000	±1	25	20	30
ECL-8X2000	2-8	900-2000	±1	20	20	30
ECL-12X2000	3-12	900-2000	±1.5	20	10	30
ECL-16X2000	4-16	900-2000	±2	15	8	30

Transaction procedure:
Inquiry - Project - Sign - Production - Inspection - Payment - Transportation - Installation& Commissioning - Guaranty
Jinan Eagle CNC Machine Co., Ltd (briefly JEM), located in Jinan city, Shandong Province, China, was founded in 2003. It is mainly engaged in developing and manufacturing of Cut to Length Line, Slitting Line, Rotary Shear, Slitting and Cut to Length Combined Line, Leveling Machine, Tension Leveler and so on. Our products are widely used in transfomer, motor, household appliance, automobiles, hardware, steel industries, etc. It can be used for processing cold and hot rolled steell, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminium, copper and other metals.
Domestic customers include First Automotive Works (FAW), Second Automotive Works, Great Wall Automobile, Bao Steel, Anshan Steel, Handan Steel, Midea Group etc, and many of coil processing centers. Internationally, our products have also been installed in Europe, South America, Africa, Southeast Asia and so on.
Welcome you to our factory!

---
