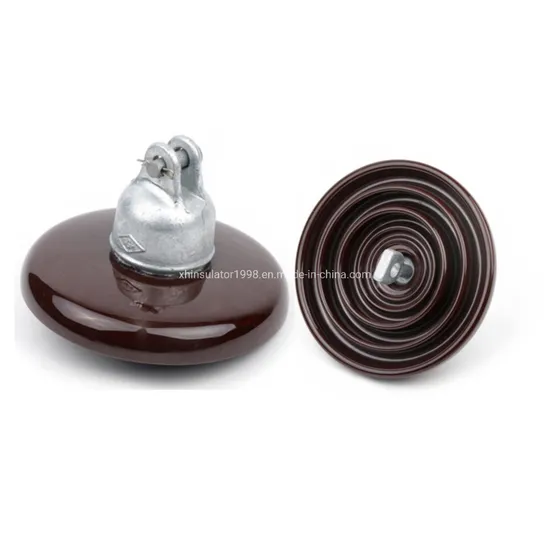

China Manufacturer 11kv 33kv 70kn 120kn Ball and Socket Disc Suspension Porcelain Insulator

Product Description

Product Description China Manufacturer 11kv 33kv Ball and Socket Disc Suspension Porcelain Insulator
Detailed Photos Suspension insulators are designed to link together into strings, typically of two or more, to provide much higher voltage protection than any single insulator. Suspension insulators are typically used on high tension power transmission towers as shown below. Porcelain is by far the most commonly used insulating material but there are a number of glass styles as well. Porcelain suspension insulators revolutionized the power distribution industry allowing much higher voltage protection -- there are several 1,000kV DC transmission lines utilizing suspension insulators.
Available for any voltage and contamination level by changing number of insulatorsMechanical strength up to 530kNHigh reliability through accumulated technologyExcellent long-term performance
Product Parameters

Fig			1	2	2	2	3	4	5	4
Class ANSI			52-1	52-2	52-3	524	52-5	52-6	52-9	52-10
Main dimensions			165	190.5	190.5	190.5	254	254	114	2794
			139.7	146	146	146	156	146	160	165
Creepage distance			178	210	292	292	279	279	171	279
Power-frequency puncture voltage(kV)			80	90	110	110	110	110	80	110
Average flashover voltage	Power-frequency	Dry	60	65	80	80	80	80	60	80
		Wet	30	35	50	50	50	50	30	50
	Critical-impuise 15x40μs wave	Positive	100	115	125	125	125	125	90	125
		Negative	100	115	130	130	130	130	100	130
Radio influence voltage data	Test voltage to ground(kV)		7.5	7.5	10	10	10	10	7.5	10
	Macimum riv at 1000khz(UV)		50	50	50	50	50	50	50	50
Electromechanical failing load(kn)			44	67	67	67	111	111	44	160
Mechanical pressure strength(n.m)			5	5.5	5.5	6	7	7	5	10
Timeload test(kn)			27	44	44	44	67	67	27	107

Packaging & Shipping
Our Advantages
FAQ 1. Who are we?
We are based in Jiangxi, China, start from 1998, sell to Southeast Asia, Mid East, North America, South America, Africa, Domestic Market, Eastern Asia. There are total about 200-300 people in our factory.
2. How can we guarantee quality?
The quality is confirmed from the source material entering the factory, and technical personnel refer to quality supervision for each process. The same product is produced every day of the year, and the details of the product are constantly improved to ensure product quality.
3.What can you buy from us?
Power related products (Porcelain insulator, glass insulator, composite insulator, power fittings, etc, power products)
4. Why should you buy from us not from other suppliers?
1).Professional manufacturer with advanced production equipment, exquisite technology and advanced testing techniques.
2).After-sale quality is guaranteed.
3). First class service.
4). Customizable.
5. What services can we provide?
1) Free Samples
2) Welcome to visit the factory at any time
3)Accepted Delivery Terms: FOB,EXW,CIF, etc;
4)Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
5)Accepted Payment Type: T/T,MoneyGram,Credit card,PayPal,Western Union,Escrow;

---
