US$10.00-100.00
|
1 Piece
(MOQ)
|
Basic Info.
Actuator
Handwheel, Gearbox, Electric etc
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Outside Gate Valve
Usage
Regulation, Safety, Flow Control
Standard
BS5163/DIN3202 F4/F5/Awwa C509 C515
Application
Industrial Usage, Water Industrial Usage, Household Usage
Face to Face
DIN3202 F4/F5, BS5163, Awwa C509
Certificate
Wras Approved
End Standard
Pn6/10/16/25/21/150lb/JIS5K/10K/As2129 Table D/E/F
Transport Package
Plywood Case
Specification
DN50-DN1200
Production Capacity
10, 000, 000
Packaging & Delivery
Package Size
110.00cm * 110.00cm * 90.00cm
Package Gross Weight
500.000kg
Product Description

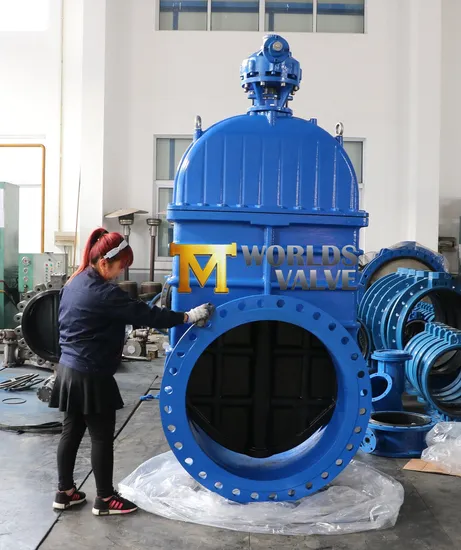

Non-rising Stem Resilient Seated Gate Valve
Design characters:
1. Equipment used in cutting off medium in pipeline.
2. Suitable for hand wheel, gear operators or electric actuators.
Performance:
Nominal Diameter: DN40-DN1200
Nominal Pressure PN (MPa):1.0, 1.6, 2.0, 2.5
Testing pressure (water) PS (MPa)
Body seat: 1.5 times rated pressure
Seat test: 1.1 times rated pressure
Non-rising stem resilient seated gate valve are widely used in water supply and drainage, hydre or thermal power, building project as well as industrial water system, such as steel and petrochemical.
| Detailed Description: |
| Series | Non-rising stem resilient seated gate valve |
| Size: | DN40-DN600 |
| Design standard: | GB/T 12232-2005 DIN3352, EN593, MSS SP-67 |
| Pressure standard: | GB/T 13927-1992, API598 |
| Face to face: | DIN3202 F4, F5, BS5163,AWWA C509 |
| Flange standard: | DIN2532, DIN2533 |
| Body: | CI/DI/WCB/ALB/CF8/CF8M |
| Disc: | DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel
|
| Stem: | SS416/SS304/SS431/17-4PH |
| Seat: | NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM()/PTFE |
| Suitable temperature: | -10~90 |
| Medium: | Flesh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
COMPANY INTRODUCTION
**Company Goal : OEM service for world-famous valve brand.
**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc
Dimension Measurement &Inspection
Assembly Workshop
Packaging
Certificates -- CE ISO WRAS ACS certificates
>>
