3160dtex/2840d Aramid Filament Excellent Thermal-Stability High-Temperature Resistance PARA Filament Yarn

Product Description

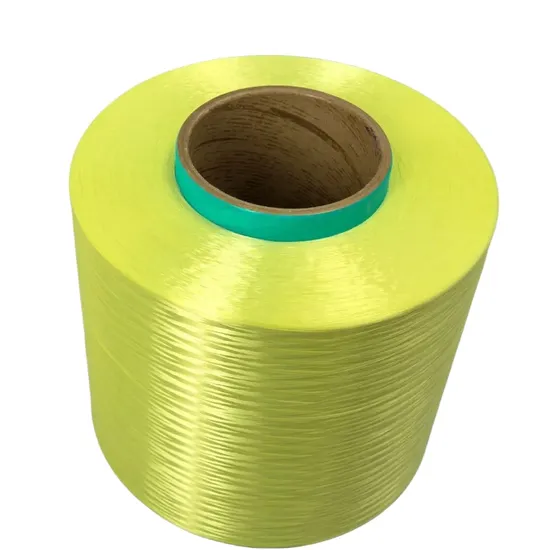

Para Aramid Filament
Para Aramid Filament is para-aramid fiber made of PPTA polymer. It is yellow, low-density and high-strength. Its strength-to-weight ratio is 6 times higher than steel, therefore para-aramid fiber is widely used in tyre, optical cable, ballistics, high-speed rail and aerospace field.Our filament yarn also has low flammability and excellent thermal stability, enabling its mechanical strength decay within 20% under 200°C, which is important in heat protection, friction and sealing fields.
Technology Parameters

T-FL007 2840D/2000f
Product Name	Para Aramid Filament	Inspection Items	Units	Data	Testing Basis
Model	T-FL007	Linear Density	dtex	2700-2980/2000f	Q/GBSAR001-2019
Product Specification	3160dtex/2840D 2000f	Tensile Tenacity	cN/dtex	18-20	Q/GBSAR001-2019
LOI(%)	29-30	Broken Strength	N	560-620	Q/GBSAR001-2019
Application Temperature	-190-505ºC	Chord Modulus	g/d	830-900	Q/GBSAR001-2019
Thermal Stability	90% (Strong residual value after 48 hours at 200 ºC in air)	Elongation at Break	%	2.3-2.7	Q/GBSAR001-2019
		Moisture Content	%	3-4.5	Q/GBSAR001-2019
Thermal Expansivity	-3.5x10-6/K	Fresh Content	%	0.8-1.2	Q/GBSAR001-2019

Aramid Filament Feature	Aramid Filament Main Application
High strength-to-weight ratio Heat and chemical resistance Flame retardant and fireproofing Cut resistance and tenacity Electrical insulation	Optical cable Bulletproof, woven/UD fabric Ropes, conveyor belts, bags Sealing of pump shaft Tire cord, hose, RTP pipe

Storage and Package
Storage
Para Aramid Filament yarn should be kept dry in original bags and properly stocked.Preferably store at room temperature with 35-65% relative humidity.Avoid the sun, rain and fire.
Packaging
1. Each bobbin packed in black plastic film bag Net weight: 5.00kg/25.00kg
2. 23 bobbins per layer and 3layers per carton. Carton size: 110*110*95cm Net weight: 345.00kg, Gross weight: 445.00kg
3. Shipment by sea: Generally 20 pallets can be loaded into 20 feet container with total net weight of 6,900kg. FAQ
1.What Kind of Company are We?
Shanghai Gengyun Industrial Co., Ltd., based on the development of technology forum OF telecom optical&electric cable equipment and materials(TOEM), is mainly engaged in investment, trade, and technical services in the field of telecom optical & electric cable.
We provide our customers with complete materials demand solutions, as well as overall solutions and customized services in factory design, equipment configuration, product development and raw material supply.
2.Is Our Product Single?
We have quite a wide variety of products.
Our products contain raw materials for optical fiber & cable, telecommunication cable include PE, PVC, FRP, PBT, water blocking yarn, water blocking tape, optical fiber ink, optical fiber, steel plastic composite tape, aluminum plastic composite tape, aramid yarn, etc. and
equipment for cable manufacturing including high-speed fiber coloring and rewinding machine, fiber merging machine, fiber screening and rewinding machine, special fiber drawing machine, coating production line, high-speed cable forming production line. There are different models of products under each category, and customization is supported.
3.Are Samples Available?
For most raw materials and optical cables, we can provide samples, but you need to bear the shipping costs; for cable manufacturing equipment, we can provide factory test reports of various indicators
4.Why Choose Our Company?
Our company was established in 2008 and has 16 years of experience in the communications industry. We can provide professional optoelectronic cable solutions and support product customization. Our products and raw materials are 100% in line with industry standards. We have warehouses all over the country. Such as Shanghai, Jiangsu, Qingdao, Beijing and so on.
What We Have In The Field Of Telecom Optical & Electric Cable :
1>Mature and Efficient Supply Chain System And Rich Industrial Resources
2>Complete Materials Demand Solutions For Cable Manufacturing And Technical Services
3>Overall Solutions And Customized Services In Factory Design, Equipment Configuration, Product Development And Rawmaterial Supply
*Quotation Based On Customer's Requirements And Quantity Of Products

---
