XCMG Electric Mobile Elevator Scissor Lift 8m Gtjz0607 Used Aerial Work Platform for Sale

Product Description

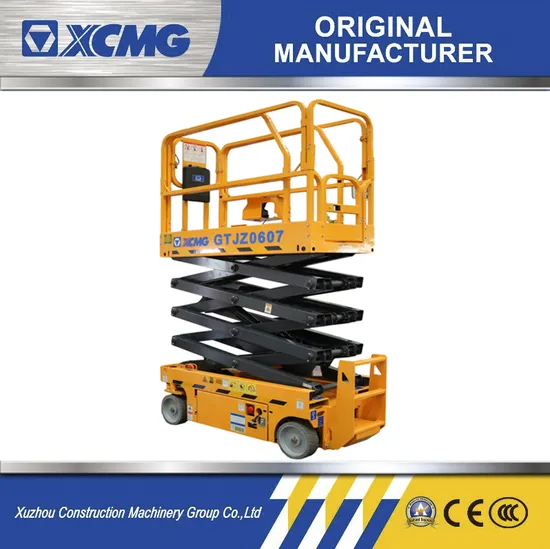

XCMG Electric Mobile Elevator Scissor lift 8m Gtjz0607 Used Aerial Work Platform.
The GTJZ0607 scissors aerial work platform which is the newly developed series by XCMG canprovide customers with a variety of personalization options.
The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace.
XCMG Scissors aerial work platform can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.
Advantages and highlights:
1, Low noise and zero release
The electric drive system of zero emission,low noise, high efficiency, and high energy-conservation is applied and the traceless tires are equipped to realize environmental-friendly and convenient constructions in enclosed environments, including office buildings, hospitals, and schools.
2, Meeting individual demands
Perfect safety protection,independently-designed control system and abundant matching combinations may fully meet the customized demands of customer.
3, Compact and flexible operation
The narrow design enables the vehicle to pass through single gateway with ease and the unique "zero inner turning radius" works with folding platform to realize easier transportation and translocation and flexible application in narrow spaces. The 25% gradeability makes the driving of vehicle easier.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate. Product Parameters

Item	Unit	Parameters
a Overall Length	mm	1882
b Overall Width	mm	760
c Overall Height (Guardrail folding)	mm	1771
d Wheel Base	mm	1360
Maximum Working Height	m	7.8
Maximum Platform Height	m	5.8
Maximum Load Capacity	kg	230
Extension Platform Load	kg	115
Platform Size	mm	1655×740×1185
Platform Extension Length	mm	900
Lifting Speed of Working Platform	s	16-24
Falling Speed of Working Platform	s	20-28
Total Weight	kg	1490
Travel Speed (High Speed)	km/h	4
Travel Speed (low Speed)	km/h	0.8
Max. Travel Platform Height	m	5.8
Minimum Turning Radius	m	0
Minimum Ground Clearance (Pot Hole Protector Rises/Falls)	mm	60/20
Maximum Grade Ability	%	25
Tire Specification	_	Traceless solid
		30.5cm×10.0cm
Battery	V/(Ah)	4×6(225)
Charger	A	30
Warning Angle of Inclination	°	1.5 (Both sides)
	°	3(Front or Rear)

Product Show

---
