High Mixing Efficiency Planetary Concrete Mixers with Safety Features

Product Description

High Mixing Efficiency Planetary Concrete Mixers With Safety Features

Planetary Mixer A planetary mixer is a type of mixer that consists of a central shaft mounted on a horizontal axis, with one or more arms that rotate around the shaft.
The arms are equipped with paddles or blades that mix the materials as they rotate. Planetary mixers are often used to mix high-viscosity materials, such as concrete, and are particularly useful for producing a homogeneous mix.
They are also commonly used to mix other types of materials, such as food products, chemicals, and cosmetics.
Planetary mixers are generally more expensive than other types of mixers, but they are also more efficient and are able to produce a higher-quality mix in a shorter amount of time
Company Profile
Mittelrhein international company is located in Shandong Logistics Center, featuring high-efficiency domestic logistics in China and low-cost logistics expenses.
Shandong is a major heavy industry hub in China. With 20 years of procurement history, our team provides efficient and high-quality services. We have long-term partnerships with hundreds of different factories, all of which have passed our product quality selection.
Our international procurement team is dedicated to providing high-quality products and reliable after-sales services, solving the after-sales issues of overseas buyers. Our international logistics have also been carefully selected.
The long-term partner logistics companies possess highly flexible control capabilities, whether it is rail transportation, sea transportation, or combined transportation. The routes and emergency transfer operations are very mature and experienced, which can better reduce unnecessary effort, time, and shipping cost losses for our customers. Product Description

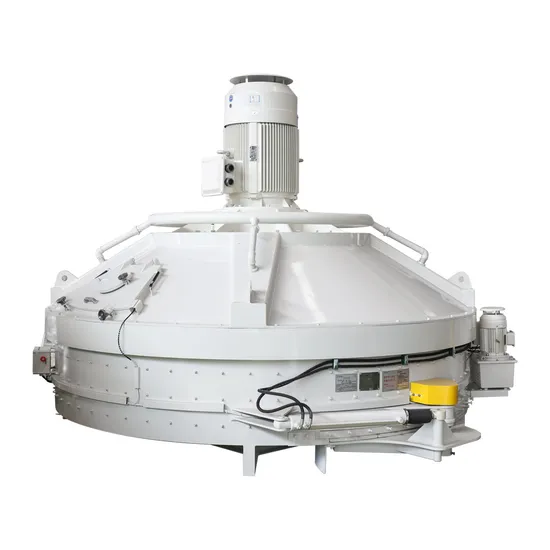

This vertical shaft planetary mixer(0.5 cubic),with compact structure and stable transmission Hydraulic pump station: The unloading method adopts hydraulic unloading (pneumatic unloading is optional), and the unloading door can be opened manually in an emergency. Inspection door: safe and convenient inspection; the mixing condition can be observed during operation without cutting off the power supply. Stirring device: The stirring principle is revolution + rotation. The stirring blade is designed as a parallelogram structure to improve the utilization rate and life of the blade.. Water channel device: upper water channel, the nozzle adopts spiral solid conical nozzle, uniform atomization effect, uniform stirring. High mixing efficiency, uniform mixing, no dead angle, 1 planetary shaft, 2 mixing arms, 1 unloading scraper, 1 side scraper. 7.Hydraulically driven discharge door opens and close. Detailed Photos
Our Advantages
Product Parameters

Type concrete mixer	CMP50	CMP100	CMP150	CMP250
Output capacity(L)	50	100	150	250
Input capacity(L)	75	150	225	375
Output weight(Kg)	120	240	360	600
Mixing power(Kw)	3	5.5	7.5	11
Dischar ging power(Kw)	optional
Planet/mixing arm	1/2	1/2	1/2	1/2
Paddle(nr)	1	1	1	1
Discharging paddle(nr)	1	1	1	1
Weight(Kg)	700
Lifting power(Kw)
Dimension(L*W*H,mm)	950*790*1200	1670*1460*1450	1670*1460*1620	1860*1650*1780
Type concrete mixer	CMP330	CMP500	CMP750	CMP1000
Output capacity(L)	330	500	750	1000
Input capacity(L)	500	750	1125	1500
Output weight(Kg)	800	1200	1800	2400
Mixing power(Kw)	15	18.5	30	37
Dischar ging power(Kw)	optional
Planet/mixing arm	1/2	1/2	1/3	2 / 4
Paddle(nr)	1	1	1	1
Discharging paddle(nr)	1	1	1	1
Weight(Kg)			3900	6200
Lifting power(Kw)			7.5	11
Dimension(L*W*H,mm)	1870*1870*1855	2230*2080*1880	2580*2340*2195	2890*2602*2220

Packaging & Shipping After Sales Service
1.24 hours support.
2.Arrange the install and test without delay.
3.One year guarantee for probems caused by quality.
4.Supply spare parts in time.
5.Engineers can conduct on-site surveys as requested by the client.
