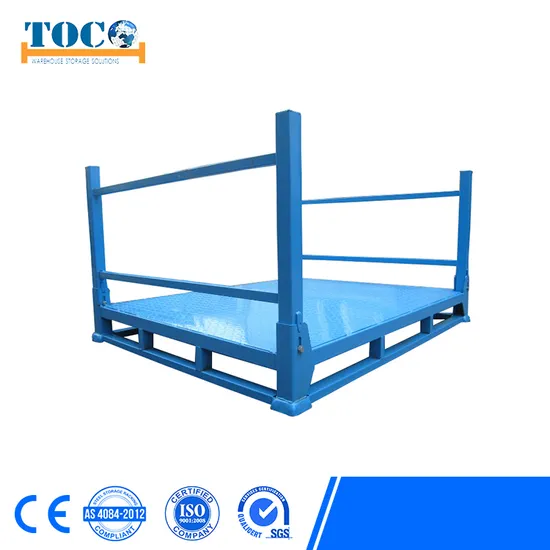

Galvanized Pallet stacking frame equipmentt manurack are the popular method of storage for a temporary basis for it's large loading capacity, excellent space utility and easy transportation. The stacking racks can be moved or transported together with goods, which improve tire loading and unloading efficiency and also protect goods from damage.
These racks consist of four upright posts and a base which can all be completely disassembled or folded for easy storage and transportation.
| Similar design, defferent sizes |
| Model No. | Exterior Dimension | Loading Capacity | Finish | Qty / 40ft |
| | LxWxH(mm) | kg | | sets |
| ISR1-Base | 1395x1060x310 | 1500 | Hot Gal | 220 |
| ISR1-Post | 1200x60x2.5 | Hot Gal | 880 |
| ISR2-Base | 1875x1060x310 | 1500 | Hot Gal | 143 |
| ISR2-Post | 1200x60x2.5 | Hot Gal | 572 |
| ISR4-Base | 1545x1050x310 | 1500 | Powder Coated | 247 |
| ISR4-Post | 1510x60x2.5 | Powder Coated | 988 |
| ISR5-Base | 1200x1000x310 | 1000 | Cold Gal | 255 |
| ISR5-Post | 2000x60x2.5 | Cold Gal | 1020 |
| ISR6-Base | 950x950x310 | 1000 | Cold Gal | 160 |
| ISR6-Post | 2100x60x2.5 | Hot Gal | 320 |
| Material | Q235B |
| Application | Warehouse, logistic, recycling, etc. |
| Remark | Costomized or OEM support |
| Key Features | 1.Strong tubular steel - stack up to 4 high |
| 2.Removable arms - fully collapsible, save space, easy storage when not in use |
| 3.Cup feet - easy stacking |
| 4.Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use |
