Zd350 Professional Electric Lift and Tilt Sliding Table Panel Saw Machine with Digital Display

Product Description

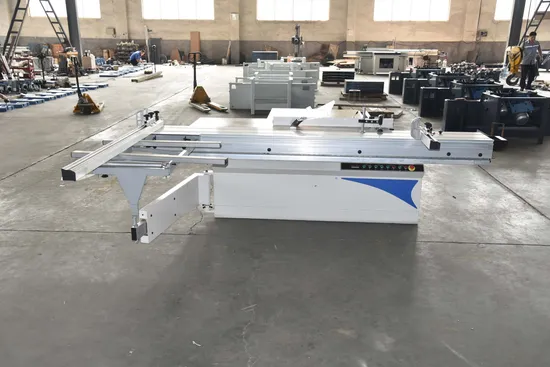

ZD350 Sliding Table Panel Saw


Double layer sliding table, more durable and durable. Not easily deformed.
Saw blade electric lifting and digital readout. CHINT brand electric device. More safety and durable.
Independent electric box is dustproof, which can low rate of power failure. Top quality electric parts, more sensitive and longer lifetime.
Double saw blade. Scoring saw blade to cut a line and big saw blade to cut, which make sure the cutting surface is more smooth and perfect without burrs.
Motor part is fixed on the machine body to make sure the stable of machine. The cutting effect is more precision and perfect.
Big rip fence to make sure the position will not move even longtime work. No need to adjust frequently because of the displacement caused by board impact. This will make sure the high precision and more efficient. And special design make sure the saddle will not hit the blade and will not drop on the floor during working. This make sure the high efficient and high precision.
Specification:

Dimension of sliding table	3200x388mm
Gross cut capacity	3200 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	0-45° (Electrical Tilting)
Diameter of main saw blade	350 mm(Electrical Lifting)
Max cutting height 90°/ 45°	100 mm/65 mm
Speed of main saw spindle	4000/6000 r.p.m
Main saw motor power	5.5 kw
Main spindle diameter	30 mm
Diameter of scoring saw blade	120 mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1 kw
Scoring saw spindle diameter	20 mm
Gross weight	1050 KGS
Overall dimension	3250x3150x900 mm

PRODUCT APPLICATION
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.We are committed to providing one-stop service for factory production. Relying on the favorable geographical advantages of Qingdao Industrial Park, we have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as :polishing machines ,palner machine,press machine etc,which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.Bring our products and services for more than 66 countrys people and customers. We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback .Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Our Missions:
To provide customers with quality products and services, customer satisfaction is our highest criterion
Our Values:
Bring the highest quality and best advice for customer
Commitment to deliver the best we can in an ethical and professional manner
Continuously improve product technology and services to provide more customers with one-stop equipment procurement services.

SUCCESSFUL CASES


CERTIFICATE

PAYMENT AND LOGISTICS
TOP RATED
Recent activities CIFF FWM Shanghai Exhibition September 19,2024
FAQ:
Q:How to order?
A:Ask us → come to map to customize → use the situation to inform → receive our product design recommendation → negotiate details
Festival → Confirm the sample → sign contract/deposit → batch production → goods are ready → balance/delivery → further cooperation
Q:Which transportation method is available?
A:It is a special express delivery of shipping, the China Express Mail, and the Express Express can choose other transportation methods. Please contact us. If you need another shipping route.

---
