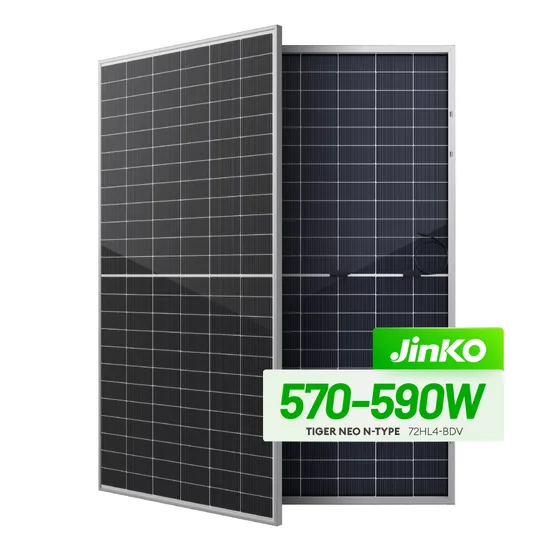

Jinko Outdoor Photovoltaic Solar Panel N Type 580W 700watts 550W 720W PV Module for House Power Price

Product Description

Product DescriptionSpecification

Module Type: JKMxxxN-72HL4-BDV	570	575	580	585	590
Maximum Power (Pmax/w)	570	575	580	585	590
Maximum Power Voltage (Vmp/V)	43.58	43.73	43.88	44.02	44.17
Maximum Power Current (Imp/A)	13.08	13.15	13.22	13.29	13.36
Open-circuit Voltage (Voc/V)	52.10	52.30	52.50	52.70	52.90
Short-circuit Current (Isc/A)	13.83	13.89	13.95	14.01	14.07
Module Efficiency STC (%)	22.07	22.26	22.45	22.65	22.84
Operating Temperature(°C )	-40°C~+85°C
Maximum system voltage	1500VDC (IEC)
Maximum series fuse rating	30A
Power tolerance	0~+3%
Temperature coefficients of Pmax	-0.29%/°C
Temperature coefficients of Voc	-0.25%/°C
Temperature coefficients of Isc	0.045%/°C
Refer. Bifacial Factor	80±5%

Tiger Neo N-type & Tiger Pro Series
615~635W BifacialTiger Neo N-Type 78HL4-BDV
Cells Layout: 156 Half Cells(2x78)Dimensions: 2465x1134x30mmWeight: 34kgModules per box: 36pcsModules per 40' container: 576pcs615~635W Mono-Facial
Tiger Neo N-type 78HL4-(V)Cells Layout: 156 Half Cells(2x78)Dimensions: 2465x1134x30mmWeight: 29.5kgModules per box: 36pcsModules per 40' container: 576pcs600~625W Bifacial
Tiger Neo N-type 66HL4M-BDVCells Layout: 132 Half Cells(2x66)Dimensions: 2382x1134x30mmWeight: 32.4kgModules per box: 36pcsModules per 40' container: 720pcs570~590W Bifacial
Tiger Neo N-type 66HL4M-BDVCells Layout: 132 Half Cells(2x66)Dimensions: 2382x1134x30mmWeight: 32.4kgModules per box: 36pcsModules per 40' container: 720pcs570~590W Mono-Facial
Tiger Neo N type 72HL4-BDVCells Layout: 144 Half CellsDimensions: 2278x1134x35mmWeight: 27kgModules per box: 31pcsModules per 40' container: 620pcs535~555W Bifacial
Tiger Pro 72HC-BDVP BifacialCells Layout: 144 Half CellsDimensions: 2278x1134x30mmWeight: 31kgModules per box: 36pcsModules per 40' container: 720pcs550~570W Mono-Facial
Tiger Pro 72HCCells Layout: 144 Half CellsDimensions: 2278x1134x35mmWeight: 27kgModules per box: 31pcsModules per 40' container: 620pcs470~490W Mono-Facial
Tiger Neo N-type 60HL4-(V)Cells Layout: 120 Half Cells(6x20)Dimensions: 1906x1134x30mmWeight: 22.5kgModules per box: 36pcsModules per 40' container: 864pcs425~455W Mono-Facial
Tiger Neo N-type 54HL4R-(V)Cells Layout: 108 Half Cells(6x18)Dimensions: 1762x1134x30mmWeight: 21kgModules per box: 36pcsModules per 40' container: 936pcs420~440W All Black
Tiger Neo N-type 54HL4R-BCells Layout: 108 Half Cells(6x18)Dimensions: 1762x1134x30mmWeight: 21kgModules per box: 36pcsModules per 40' container: 936pcsPictures & Package
Tier 1 Solar Module
