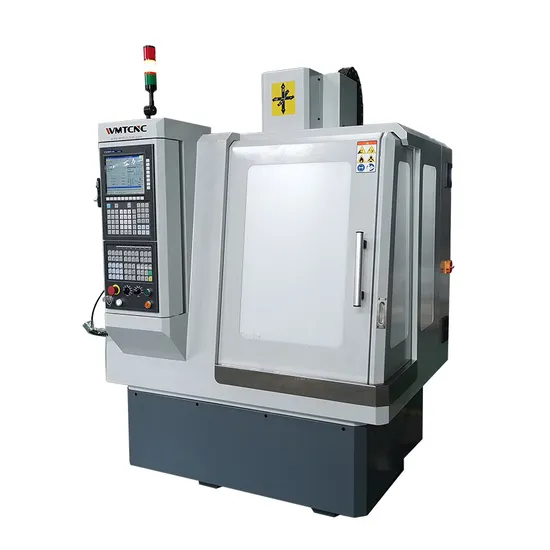

Precision XH7122 precision 3 axis CNC milling machine with CE

Product Description

Product Description
CNC Milling Machine XH7122 Main Features:
1. China CNC milling machine with BT30 spindle;
2. GSK and Siemens system optional.

CNC miling machine Specification	XH7122
Worktable size(L*W)	700x210mm
Max. loading on worktable	200kgs
T slot size	4x14x50mm
X axis travel	360mm
Y axis travel	260mm
Z axis travel	440mm
Distance from spindle face to table	75-520mm
Distance from center to column guide	295mm
Spindle speed	8000rpm
Spindle taper	BT30
Tool magazine capacity	8pcs 12pcs(optional)
X/Y/Z axis rapid feed speed	10mm/min
Positioning accuracy (X/Y/Z)	±0.02mm
Repeatability accuracy (X/Y/Z)	±0.01mm
Max. tool size	60x175mm
Max. tool weight	3kgs
Main motor power (servo)	2.2/3.7kw
Main motor torque (servo)	14/23.7N.m
Feeding motor power	1.5kw
Feeding motor torque	6N.m
Weight(N.W/G.W)	1300kgs
Dimension(L*W*H)	1470x1550x2080mm

Detailed Images
Quality Inspection
Company Profile
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
